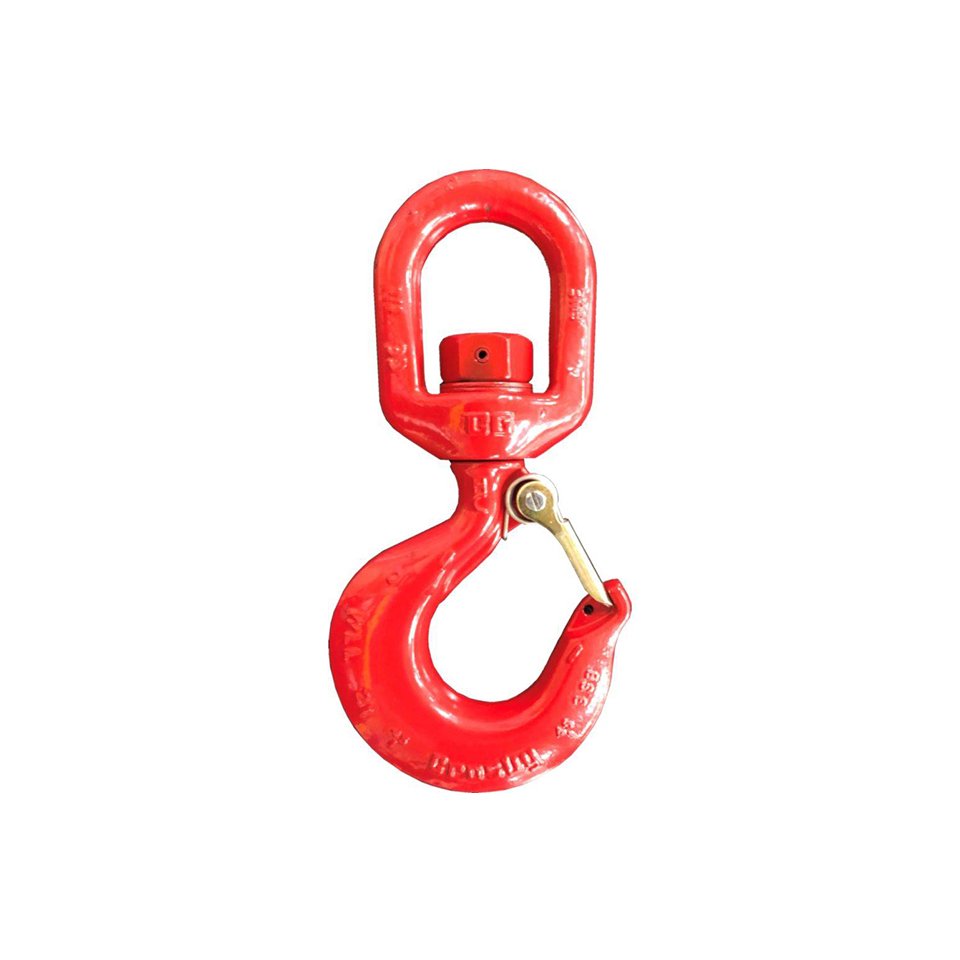

S3322 Swivel Hook – Forged Alloy Steel Lifting Hook
Product Details
The S3322 Swivel Hook is a forged alloy steel hook designed for heavy-duty lifting applications. Its anti-friction bearing allows smooth rotation under load, while the quenched and tempered construction ensures maximum strength. The hook features deformation indicators for easy inspection, meeting industry standards for safety and performance.
Working Load Limit (t) |
Hook ID Code* |

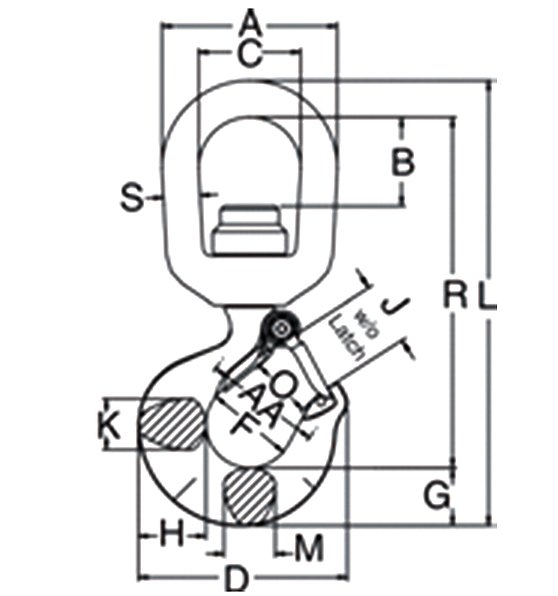

Weight Each (lb) | Dimensions (in) |
Rep. Latch Stock No. | ||||||||||||||
A |
B |
C |
D |
F |
G |
H |
J |
K |
L |
M |
O |
R |
S |
AA* | ||||
2 | GA | 2.5 | 3.00 | 1.50 | 1.75 | 3.59 | 1.50 | 1.00 | 1.16 | 1.06 | .88 | 7.64 | .88 | 1.00 | 6.01 | .63 | 2.00 | 1096421 |
3 | HA | 3.8 | 3.50 | 1.56 | 2.00 | 4.00 | 1.62 | 1.13 | 1.31 | 1.19 | .94 | 8.60 | .94 | 1.09 | 6.72 | .75 | 2.00 | 1096468 |
5 | IA | 7.0 | 4.00 | 1.56 | 2.25 | 4.84 | 2.00 | 1.44 | 1.63 | 1.50 | 1.31 | 10.32 | 1.13 | 1.36 | 8.00 | .88 | 2.50 | 1096515 |
7 | JA | 14.0 | 5.00 | 1.94 | 2.75 | 6.27 | 2.50 | 1.81 | 2.06 | 1.78 | 1.66 | 12.84 | 1.44 | 1.61 | 9.90 | 1.13 | 3.00 | 1096562 |
11 | KA | 22.3 | 5.62 | 2.05 | 3.12 | 7.54 | 3.00 | 2.25 | 2.63 | 2.41 | 1.88 | 15.24 | 1.63 | 2.08 | 11.74 | 1.25 | 4.00 | 1096609 |
15 | LA | 36.0 | 7.12 | 3.62 | 4.10 | 8.33 | 3.25 | 2.59 | 2.94 | 2.62 | 2.19 | 18.64 | 1.94 | 2.27 | 14.41 | 1.50 | 4.00 | 1096657 |
4.5:1 Design Factor. Maximum allowable proof load is 2.5 times Working Load Limit. *Deformation indicators.
