A330/H330 CLEVIS GRAB HOOKS

Item Number: #H1201

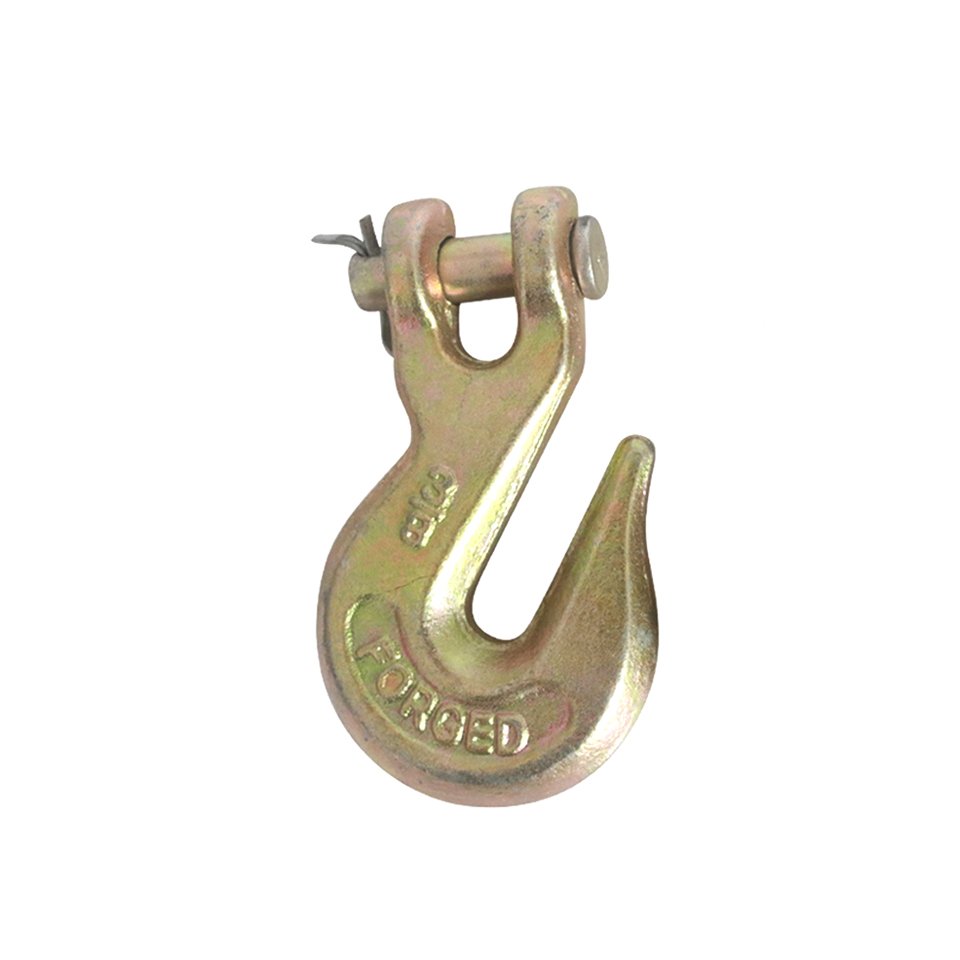

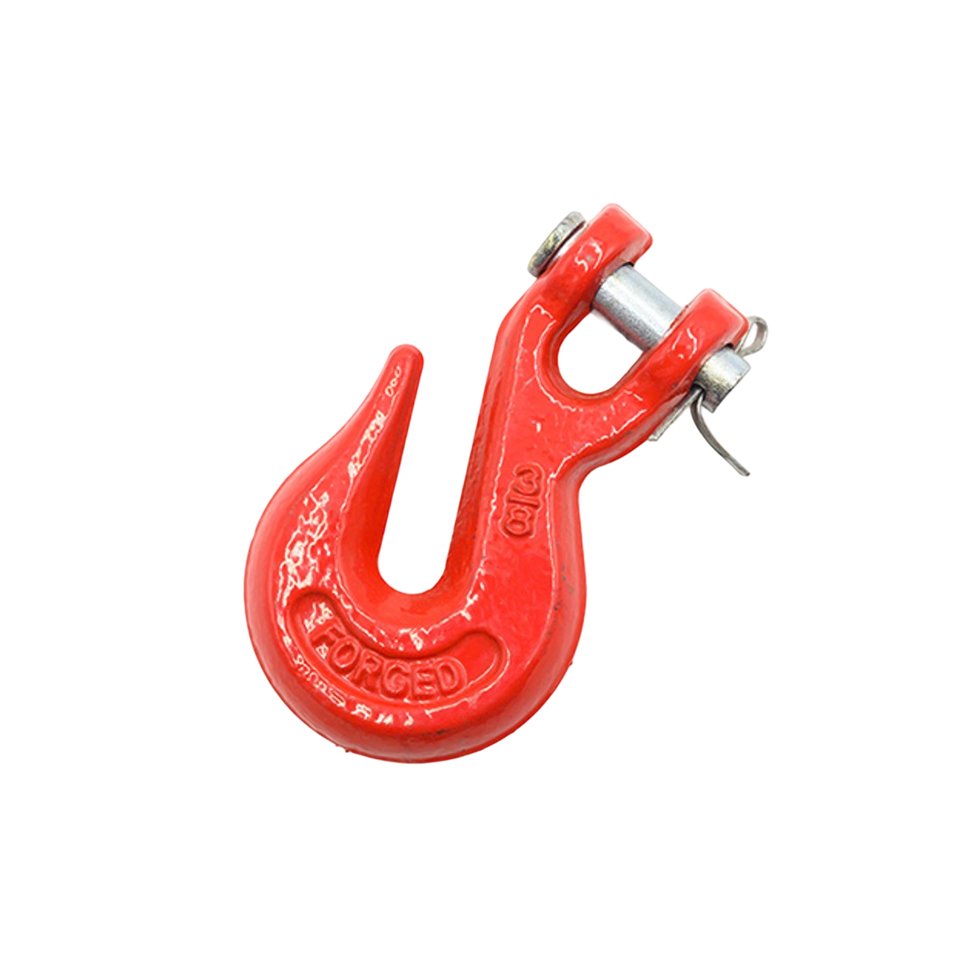

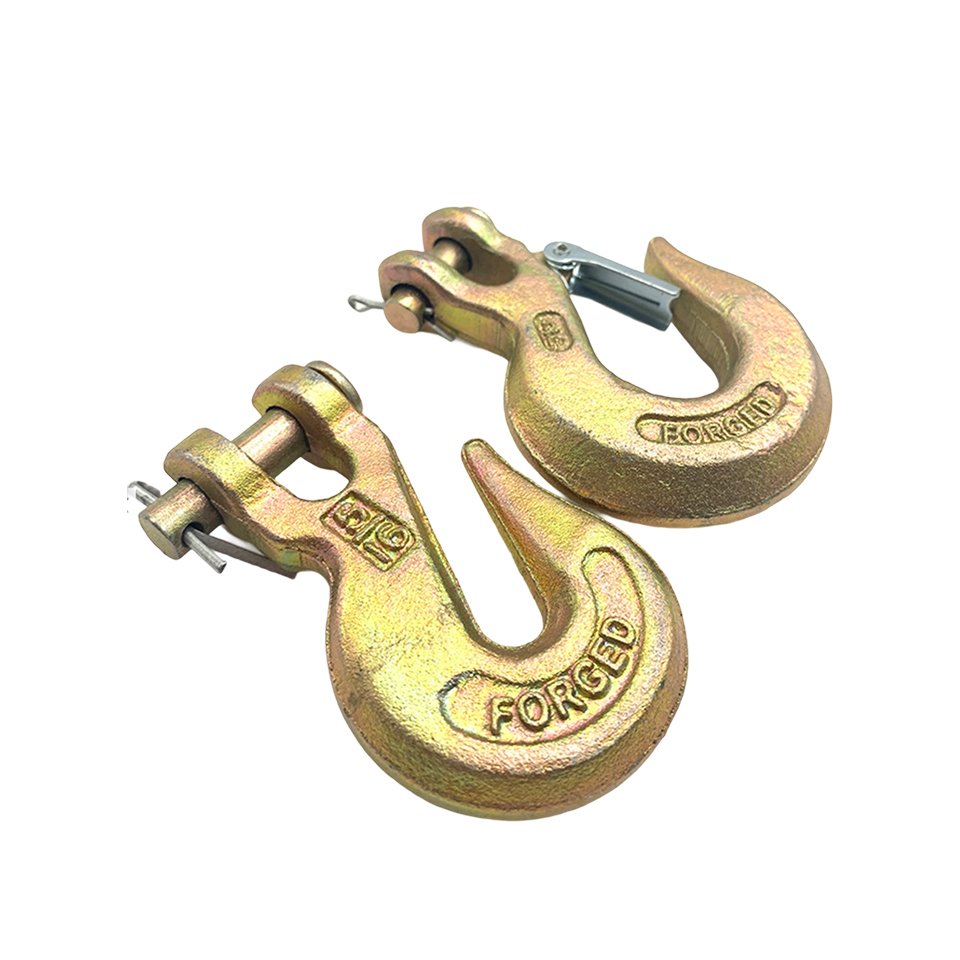

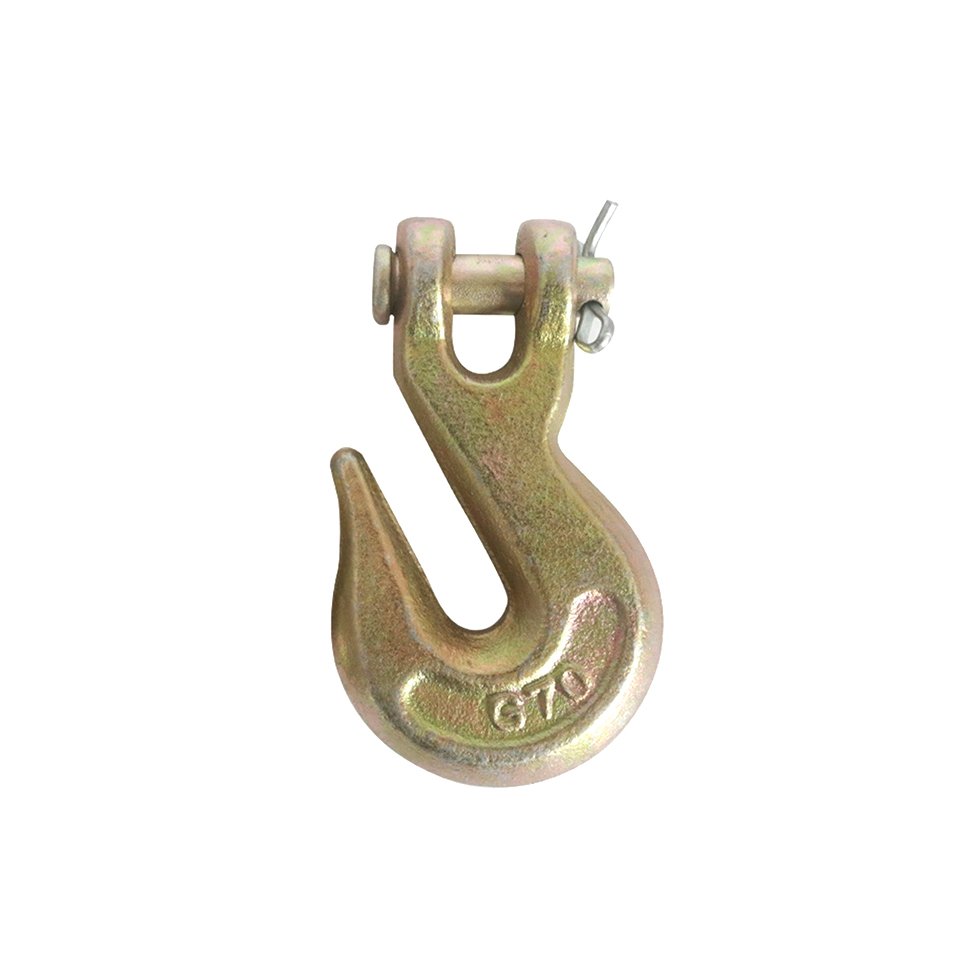

Clevis Grab Hook:

• Forged steel - Quenched & Tempered.

• Design factor is 4:1.

• Features quick and easy assembly.

• Designed for Grade 8 chain.

Inquiry Now

Add To Inquiry Cart

Product Details
Reviews
Inquiry Now
Related Products

Product Details

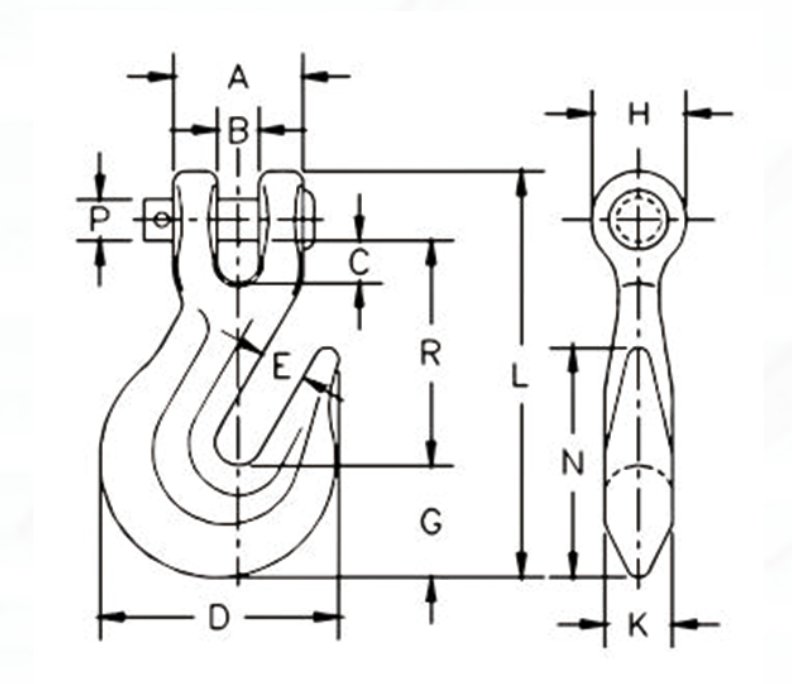

Chain Size (in)	Working Load Limit (lb)	Weight Each (lb)	Dimensions (in)
Chain Size (in)	Working Load Limit (lb)	Weight Each (lb)	(lb)	B	C	D	E	G	H	K	L	N	P	R
1/4	3500	.36	1.00	.32	.31	1.81	.34	.88	.72	.47	3.05	1.75	.31	1.64
5/16	4700	.62	1.22	.43	.36	2.12	.44	.97	.91	.59	3.66	2.06	.38	2.02
3/8	7100	1.00	1.42	.48	.49	2.53	.50	1.17	1.00	.72	4.42	2.34	.44	2.41
1/2	12000	2.22	1.88	.57	.51	3.56	.66	1.53	1.25	.78	5.72	2.97	.63	3.19
5/8	18100	4.41	2.31	.71	.67	4.39	.78	1.78	1.56	1.09	6.83	4.31	.75	4.09
3/4	24700	6.50	2.62	.94	.94	5.22	.94	2.13	1.88	1.31	8.13	5.09	.88	4.63

* These A-330 hooks are forged with an “8” designating Grade 80, and are suitable for use with Grade 8 chain in overhead lifting applications as long as the hook is proof-tested as part of the chain sling assembly or as an individual component per ASME B30.9. We recommend the use of the A-1338 / A-1358 which is proof tested and supplied with a proof test certificate.
