RIGGING HARDWARE

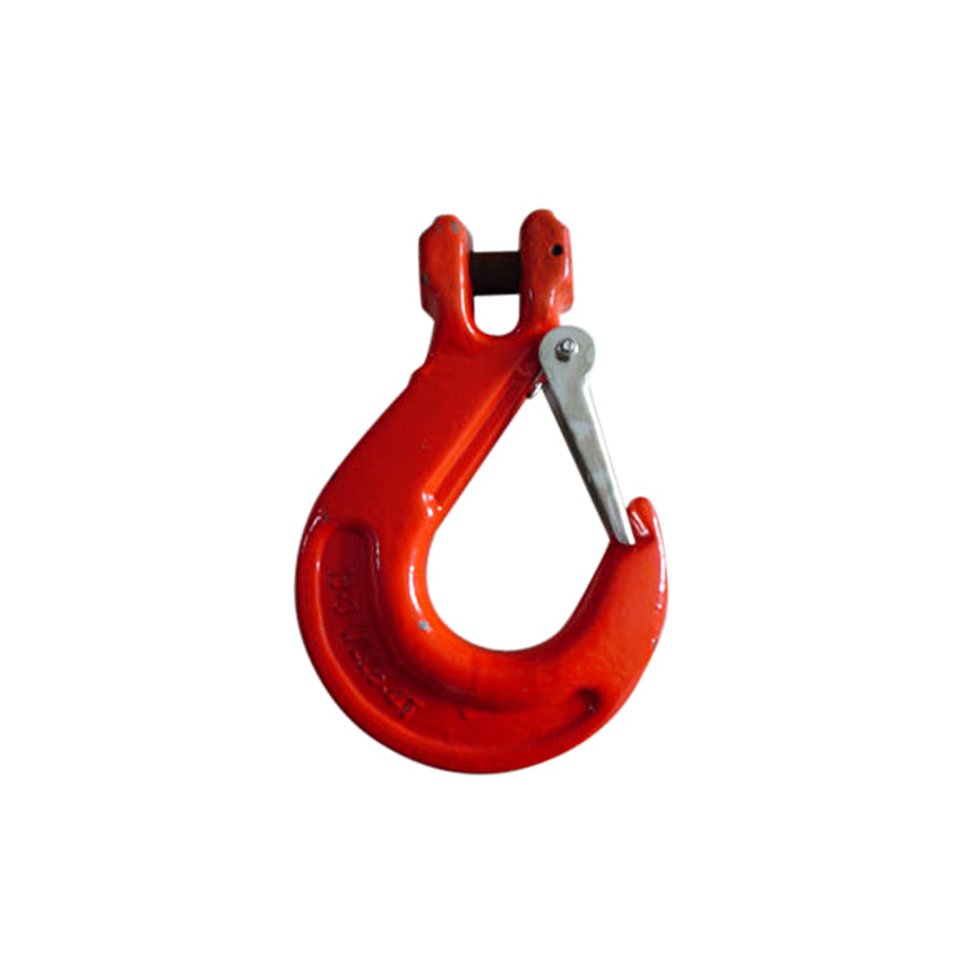

A1339 CLEVIS SLING HOOK
Item Number: #H1205
• Forged alloy steel — Quenched & Tempered.
• Individually Proof Tested to 2-1/2 times the Working Load Limit with certification.
• Each hook has a Product Identification Code (PIC) for material traceability, along with the size and the name Crosby.
• Hoist hooks incorporate QUIC-CHECK® deformation and angle indicators.
• Low profile hook tip.
• New integrated latch (S-4320/S-4339) meets the world standard for lifting.
• Heavy duty stamped latch interlocks with the hook tip.
• High cycle, long life spring.
• When secured with the proper cotter pin through the hole in the tip of hook, meets the intent of OSHA Rule 1926.1431(g) and 1926.1501(g) for personnel lifting.
• Suitable for use with Grade 100 and Grade 80 chain.
• Fatigue rated at 1-1/2 times the Working Load Limit at 20,000 cycles.
Product Details

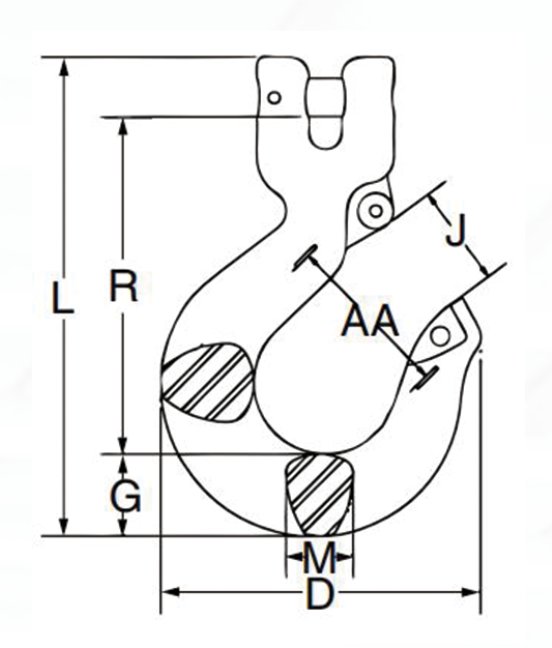

Chain Size | Working Load Limit (lb) | Hook ID Code | Weight Each (lb) | Dimensions (in) | S-4320 Repl. Latch Stock No. | S-4339 Repl. Latch Stock No. | |||||||
(in) |
(mm) |
D |
G |
J |
L |
M |
R |
AA | |||||
- | 6 | 3200 | DA | 0.64 | 2.86 | 0.73 | 0.93 | 4.21 | 0.63 | 2.95 | 1.50 | 1096325 | - |
1/4 | 7 | 4300 | HA | 1.58 | 3.86 | 1.04 | 1.19 | 5.67 | 0.75 | 3.97 | 2.00 | 1096468 | - |
5/16 | 8 | 5700 | HA | 1.57 | 3.86 | 1.04 | 1.19 | 5.67 | 0.75 | 3.95 | 2.00 | 1096468 | - |
3/8 | 10 | 8800 | IA | 2.58 | 4.38 | 1.19 | 1.53 | 6.75 | 1.00 | 4.71 | 2.50 | 1096515 | - |
1/2 | 13 | 15000 | JA | 5.28 | 5.60 | 1.44 | 1.78 | 8.38 | 1.17 | 5.89 | 3.00 | 1096562 | - |
5/8 | 16 | 22600 | KA | 9.81 | 6.76 | 1.89 | 2.41 | 10.21 | 1.44 | 6.97 | 4.00 | 1096609 | - |
3/4 | 18-20 | 35300 | - | 18.3 | 8.31 | 2.83 | 2.69 | 13.07 | 1.97 | 8.00 | 4.50 | - | 1048714 |
7/8* | 22-23* | 44100 | - | 24.6 | 9.17 | 3.07 | 3.05 | 13.98 | 1.97 | 8.76 | 5.00 | - | 1048732 |
