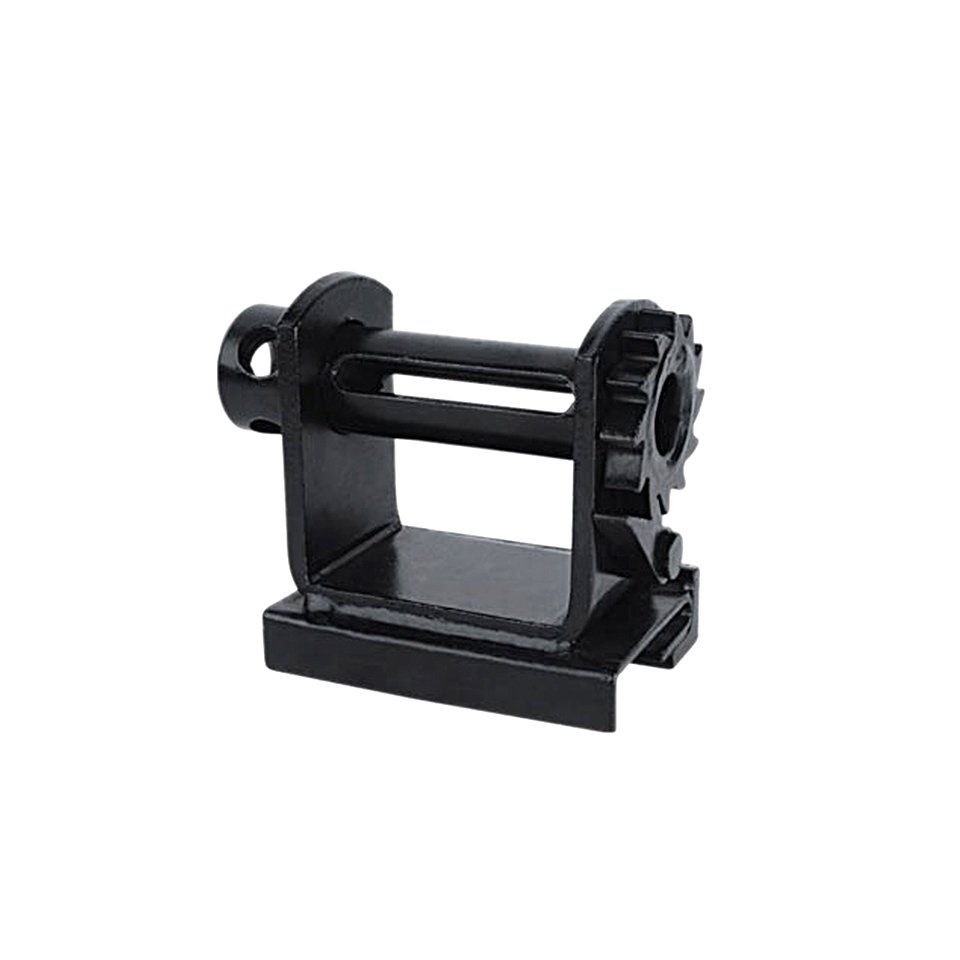

U-Plate Sliding Winch
Product Details
The U-Plate Sliding Winch is engineered with a strong U-shaped frame that enhances stability and load support. Its sliding mechanism allows precise positioning along trailer and flatbed tracks, enabling flexible cargo arrangements for industrial transport, fleet operations, and specialized hauling.Special-treated surface provide smooth handling experiences and lead to less wearing for your webbing.

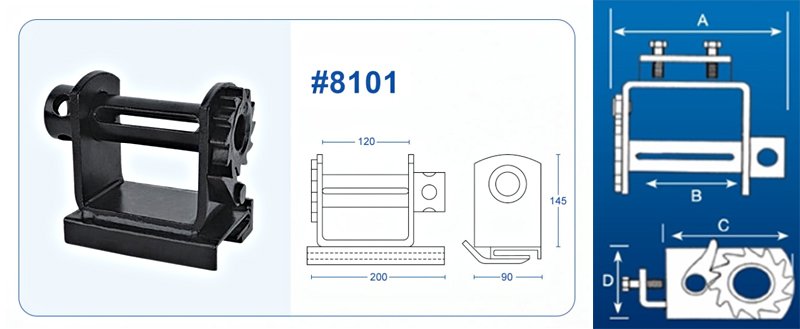

| Part Number | A(lnches) | B (Inches) | C(Inches) | D (Inches) | Weight (kgs./Ibs.) | |
| standard weld on | 7 3/4 | 4 3/4 | 5 1/2 | 3 1/2 | 3.4kgs | 7.5lbs |
| low profile weld on | 7 7/8 | 4 7/8 | 4 1/4 | 3 7/8 | 3.6kgs | 8lbs |
| deep storable weldon | 8 1/8 | 4 7/8 | 7 1/2 | 3 1/2 | 4.5kgs | 10lbs |
| standard combination | 9 3/4 | 6 1/2 | 5 5/8 | 3 1/2 | 4.1 kgs | 9lbs |
| low profile combinati | 9 3/4 | 6 1/2 | 4 3/8 | 3 7/8 | 4.5kgs | 10lbs |
| standard portable winch | 8 1/8 | 4 7/8 | 5 1/2 | 3 1/2 | 4.1 kgs | 9lbs |
| low profile portable winch | 7 3/4 | 4 7/8 | 4 | 3 7/8 | 3.6kgs | 8lbs |
| deep storable portable winch | 7 3/4 | 4 7/8 | 7 1/2 | 3 1/2 | 4.8kgs | 10.5 |
| 1750 | 7 3/4 | 5 | 6 | 3 | 4.1kgs | 9lbs |
| standard sliding winch | 7 3/4 | 4 7/8 | 6 3/8 | 3 7/8 | 4.5kgs | 10lbs |
| low profile sliding winch | 8 | 5 | 5 1/2 | 4 1/2 | 3.9kgs | 8.5lbs |
| deep storable sliding winch | 7 3/4 | 4 7/8 | 7 1/2 | 3 7/8 | 5.0kgs | 11lbs |
| uplate sliding winch | 8 | 5 | 6 3/4 | 4 | 5.3 kgs | 11.5lbs |
| standard LL sliding winch | 7 5/8 | 4 7/8 | 6 1/4 | 3 7/8 | 3.6 kgs | 8lbs |
