standard sliding winch
Product Details

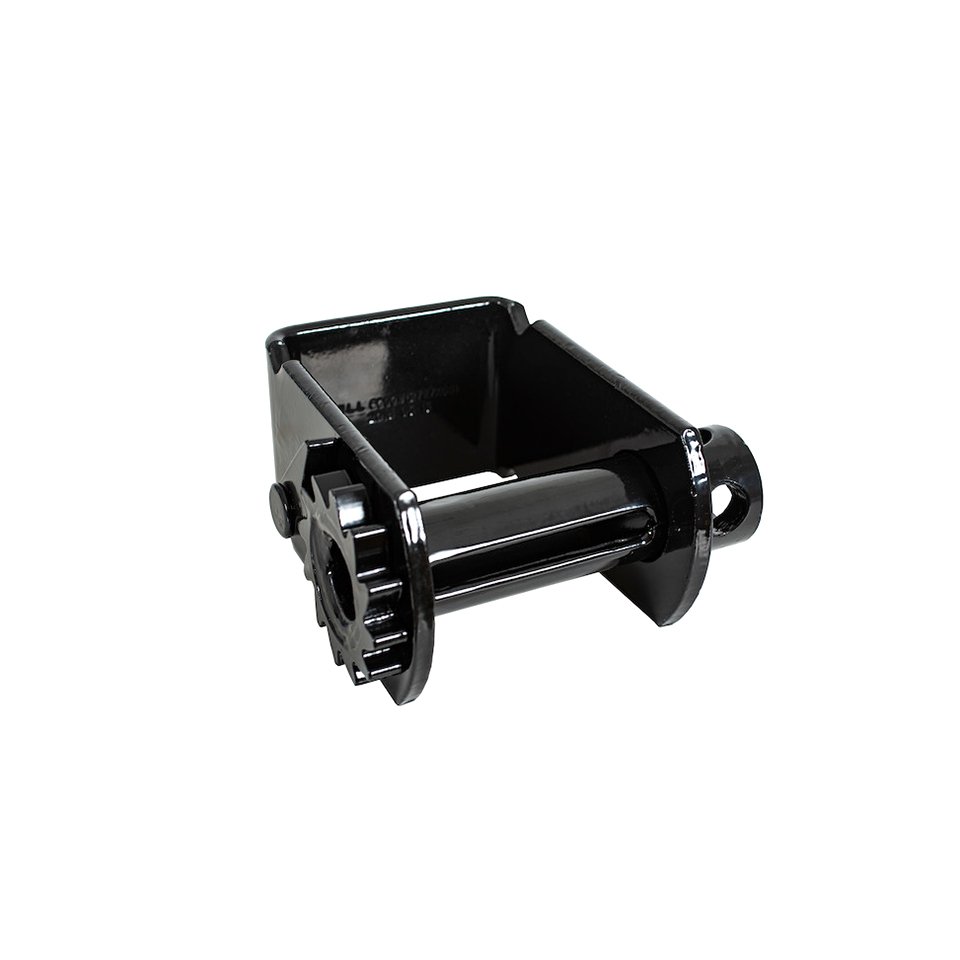

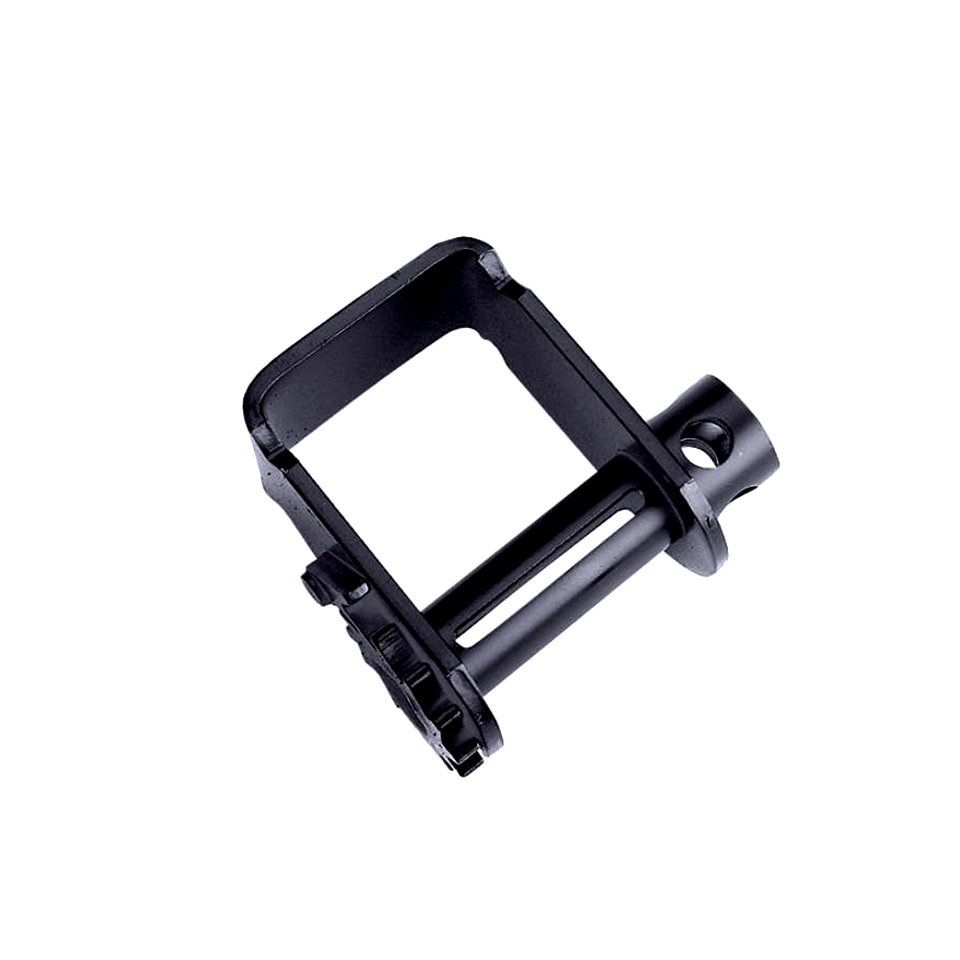

The Standard Sliding Winch integrates with trailer winch tracks to provide precise, adjustable cargo restraint. By allowing controlled movement along the track, it eliminates fixed anchor limitations and supports uniform load distribution. Engineered for transport fleets, flatbeds, and industrial logistics, this sliding system offers a versatile solution that enhances cargo stability and operational consistency.Special-treated surface provide smooth handling experiences and lead to less wearing for your webbing.

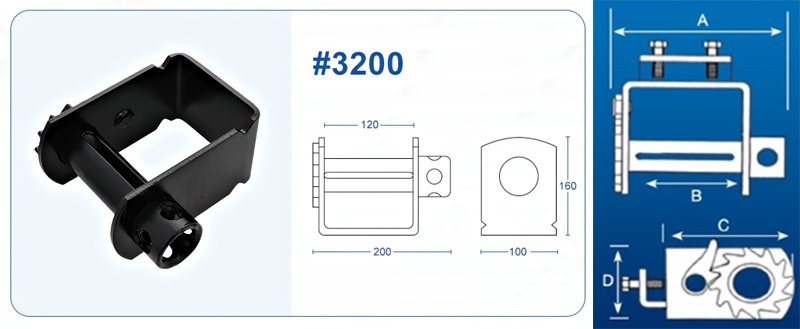

| Part Number | A(lnches) | B (Inches) | C(Inches) | D (Inches) | Weight (kgs./Ibs.) | |
| standard weld on | 7 3/4 | 4 3/4 | 5 1/2 | 3 1/2 | 3.4kgs | 7.5lbs |
| low profile weld on | 7 7/8 | 4 7/8 | 4 1/4 | 3 7/8 | 3.6kgs | 8lbs |
| deep storable weldon | 8 1/8 | 4 7/8 | 7 1/2 | 3 1/2 | 4.5kgs | 10lbs |
| standard combination | 9 3/4 | 6 1/2 | 5 5/8 | 3 1/2 | 4.1 kgs | 9lbs |
| low profile combinati | 9 3/4 | 6 1/2 | 4 3/8 | 3 7/8 | 4.5kgs | 10lbs |
| standard portable winch | 8 1/8 | 4 7/8 | 5 1/2 | 3 1/2 | 4.1 kgs | 9lbs |
| low profile portable winch | 7 3/4 | 4 7/8 | 4 | 3 7/8 | 3.6kgs | 8lbs |
| deep storable portable winch | 7 3/4 | 4 7/8 | 7 1/2 | 3 1/2 | 4.8kgs | 10.5 |
| 1750 | 7 3/4 | 5 | 6 | 3 | 4.1kgs | 9lbs |
| standard sliding winch | 7 3/4 | 4 7/8 | 6 3/8 | 3 7/8 | 4.5kgs | 10lbs |
| low profile sliding winch | 8 | 5 | 5 1/2 | 4 1/2 | 3.9kgs | 8.5lbs |
| deep storable sliding winch | 7 3/4 | 4 7/8 | 7 1/2 | 3 7/8 | 5.0kgs | 11lbs |
| uplate sliding winch | 8 | 5 | 6 3/4 | 4 | 5.3 kgs | 11.5lbs |
| standard LL sliding winch | 7 5/8 | 4 7/8 | 6 1/4 | 3 7/8 | 3.6 kgs | 8lbs |
