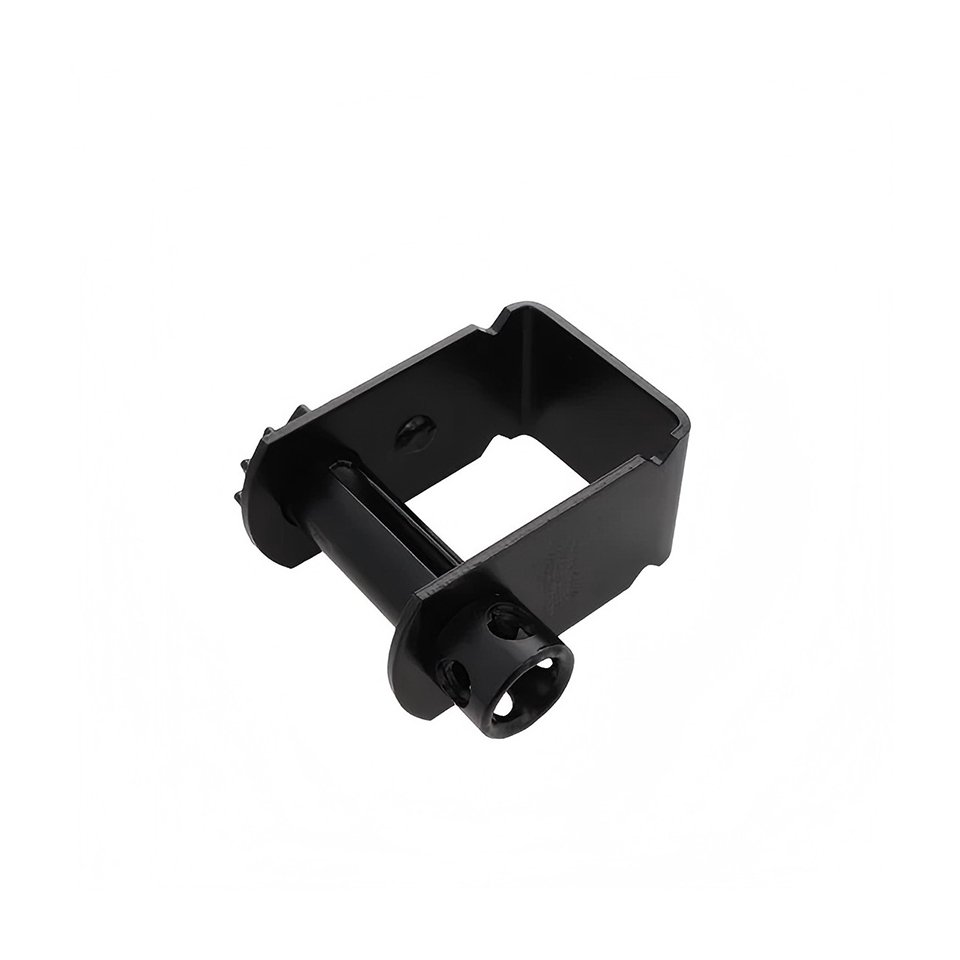

low profile sliding winch
Product Details
The Low Profile Sliding Winch is built for applications where clearance and space efficiency are essential. Designed to mount on winch tracks, it allows adjustable positioning along the trailer side, giving operators the flexibility to secure loads precisely where needed. Produced under strict quality assurance, it supports OEM production and wholesale distribution, making it a practical solution for fleets, logistics providers, and industrial transport requiring adaptable load restraint.Special-treated surface provide smooth handling experiences and lead to less wearing for your webbing.

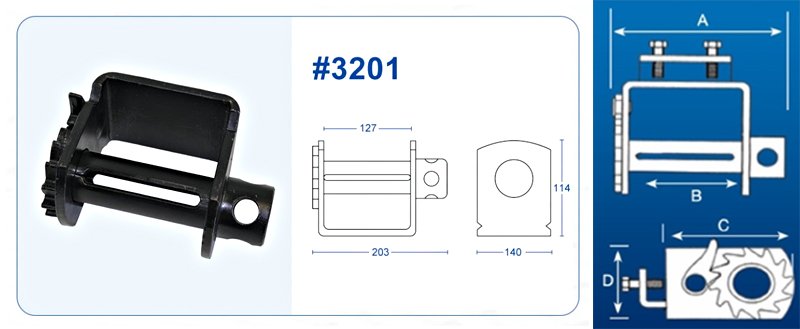

| Part Number | A(lnches) | B (Inches) | C(Inches) | D (Inches) | Weight (kgs./Ibs.) | |
| standard weld on | 7 3/4 | 4 3/4 | 5 1/2 | 3 1/2 | 3.4kgs | 7.5lbs |
| low profile weld on | 7 7/8 | 4 7/8 | 4 1/4 | 3 7/8 | 3.6kgs | 8lbs |
| deep storable weldon | 8 1/8 | 4 7/8 | 7 1/2 | 3 1/2 | 4.5kgs | 10lbs |
| standard combination | 9 3/4 | 6 1/2 | 5 5/8 | 3 1/2 | 4.1 kgs | 9lbs |
| low profile combinati | 9 3/4 | 6 1/2 | 4 3/8 | 3 7/8 | 4.5kgs | 10lbs |
| standard portable winch | 8 1/8 | 4 7/8 | 5 1/2 | 3 1/2 | 4.1 kgs | 9lbs |
| low profile portable winch | 7 3/4 | 4 7/8 | 4 | 3 7/8 | 3.6kgs | 8lbs |
| deep storable portable winch | 7 3/4 | 4 7/8 | 7 1/2 | 3 1/2 | 4.8kgs | 10.5 |
| 1750 | 7 3/4 | 5 | 6 | 3 | 4.1kgs | 9lbs |
| standard sliding winch | 7 3/4 | 4 7/8 | 6 3/8 | 3 7/8 | 4.5kgs | 10lbs |
| low profile sliding winch | 8 | 5 | 5 1/2 | 4 1/2 | 3.9kgs | 8.5lbs |
| deep storable sliding winch | 7 3/4 | 4 7/8 | 7 1/2 | 3 7/8 | 5.0kgs | 11lbs |
| uplate sliding winch | 8 | 5 | 6 3/4 | 4 | 5.3 kgs | 11.5lbs |
| standard LL sliding winch | 7 5/8 | 4 7/8 | 6 1/4 | 3 7/8 | 3.6 kgs | 8lbs |
