deep storable weld-on winch
Product Details
The Deep Storable Weld-On Winch easily fits into tight trailer or truck spaces thanks to its deep storable design. Simply mount it on the trailer side or under the bed to keep it hidden yet accessible. Its adjustable positioning allows quick alignment with cargo, making load securing faster and more efficient.Special-treated surface provide smooth handling experiences and lead to less wearing for your webbing.

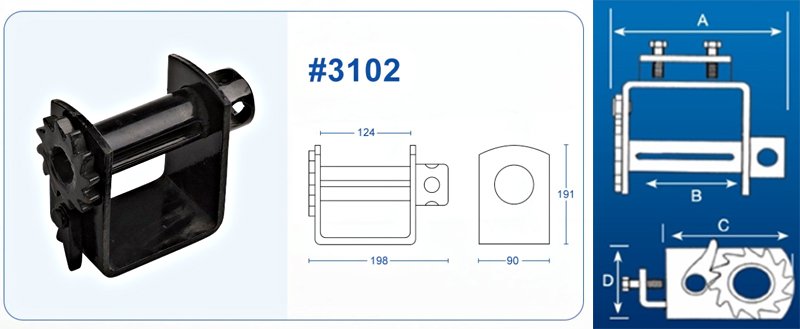

| Part Number | A(lnches) | B (Inches) | C(Inches) | D (Inches) | Weight (kgs./Ibs.) | |
| standard weld on | 7 3/4 | 4 3/4 | 5 1/2 | 3 1/2 | 3.4kgs | 7.5lbs |
| low profile weld on | 7 7/8 | 4 7/8 | 4 1/4 | 3 7/8 | 3.6kgs | 8lbs |
| deep storable weldon | 8 1/8 | 4 7/8 | 7 1/2 | 3 1/2 | 4.5kgs | 10lbs |
| standard combination | 9 3/4 | 6 1/2 | 5 5/8 | 3 1/2 | 4.1 kgs | 9lbs |
| low profile combinati | 9 3/4 | 6 1/2 | 4 3/8 | 3 7/8 | 4.5kgs | 10lbs |
| standard portable winch | 8 1/8 | 4 7/8 | 5 1/2 | 3 1/2 | 4.1 kgs | 9lbs |
| low profile portable winch | 7 3/4 | 4 7/8 | 4 | 3 7/8 | 3.6kgs | 8lbs |
| deep storable portable winch | 7 3/4 | 4 7/8 | 7 1/2 | 3 1/2 | 4.8kgs | 10.5 |
| 1750 | 7 3/4 | 5 | 6 | 3 | 4.1kgs | 9lbs |
| standard sliding winch | 7 3/4 | 4 7/8 | 6 3/8 | 3 7/8 | 4.5kgs | 10lbs |
| low profile sliding winch | 8 | 5 | 5 1/2 | 4 1/2 | 3.9kgs | 8.5lbs |
| deep storable sliding winch | 7 3/4 | 4 7/8 | 7 1/2 | 3 7/8 | 5.0kgs | 11lbs |
| uplate sliding winch | 8 | 5 | 6 3/4 | 4 | 5.3 kgs | 11.5lbs |
| standard LL sliding winch | 7 5/8 | 4 7/8 | 6 1/4 | 3 7/8 | 3.6 kgs | 8lbs |
