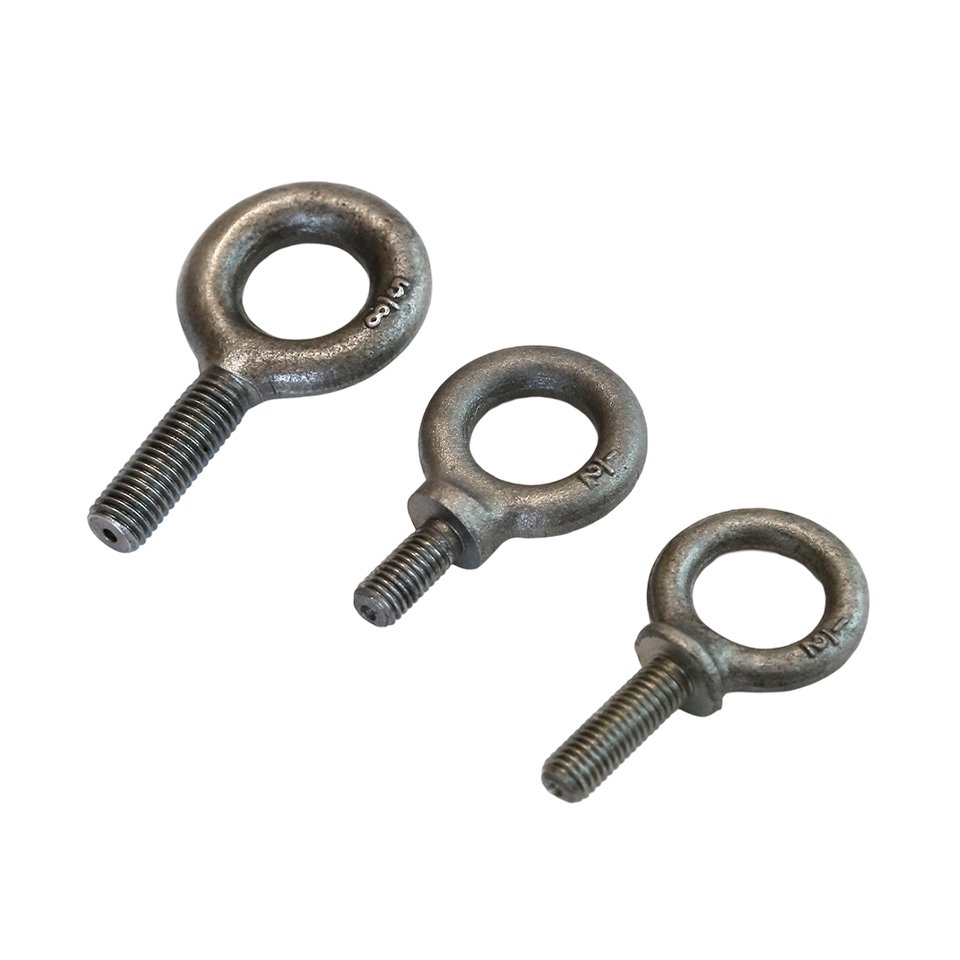

M279 METRIC

Item Number: #EB1004

• Forged steel - Quenched & Tempered.

• Working Load Limits shown are for in-line pull. For angle loading, see Warnings & Applications.

• Fatigue rated at 1-1/2 times the Working Load Limit at 20,000 cycles.

• Recommended for in-line pull.

• S-279 threaded UNC.

• M-279 metric threaded.

• Meets or exceeds all requirements of ASME B30.26 including identification, ductility, design factor, proof load and temperature requirements. Importantly, these bolts meet other critical performance requirements including fatigue life, impact properties and material traceability, not addressed by ASME B30.26.

Inquiry Now

Add To Inquiry Cart

Product Details
Reviews
Inquiry Now
Related Products

Product Details

Size (mm)	Working Load Limit (kg)	Weight Each (kg)	Dimensions (mm)

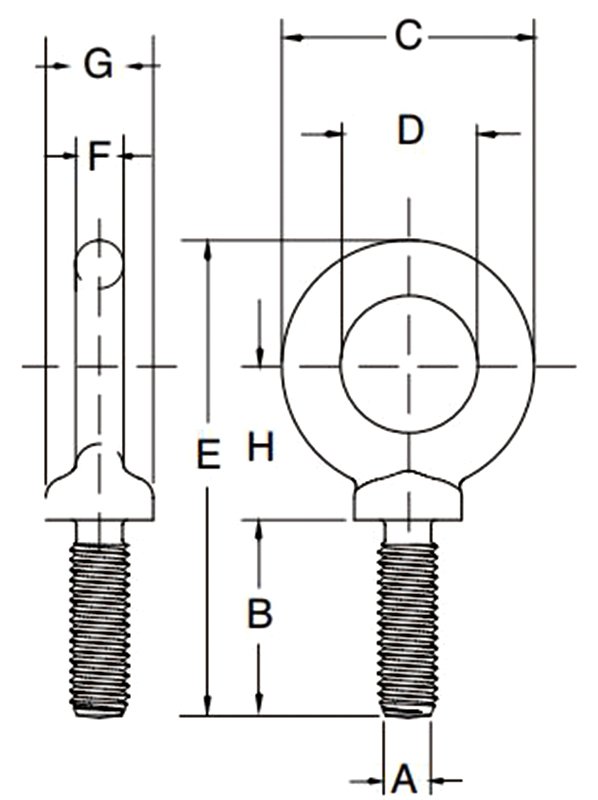

Size (mm)	Working Load Limit (kg)	Weight Each (kg)	A* Thread	B	C	D	E	F	G	H
M6 x 13	200	.03	M6 x 1.0	13.0	28.7	19.1	47.0	4.9	13.5	19.6
M8 x 13	400	.05	M8 x 1.25	13.0	35.1	22.4	54.6	6.4	15.0	24.1
M10 x 17	640	.07	M10 x 1.5	17.0	41.1	25.4	64.3	7.9	17.5	26.5
M12 x 20.5	1000	.11	M12 x 1.75	20.5	49.5	30.2	77.7	9.7	23.1	32.8
M16 x 27	1800	.25	M16 x 2.0	27.0	60.5	35.1	96.0	12.7	28.7	38.9
M20 x 30	2500	.42	M20 x 2.5	30.0	70.0	38.1	108	16.0	35.1	43.4
M24 x 36	4000	1.05	M24 x 3.0	36.0	95.5	51.0	142	22.4	46.0	58.4
M27 x 69.8	5000	1.42	M27 x 3.0	69.8	107	57.1	183	24.6	52.3	59.7
M30 x 45	6000	1.77	M30 x 3.5	45.0	114	63.5	171	25.4	58.0	69.3
M36 x 54	8500	3.12	M36 x 4.0	54.0	140	76.0	207	31.8	70.0	83.3
M42 x 95.2	14000	4.58	M42 x 4.5	95.2	159	88.9	266	35.0	76.2	91.4
M48 x 102	17300	8.71	M48 x 5.0	102	194	101	313	46.0	85.9	114
M64 x 127	29500	14.74	M64 x 6.0	127	223	114	378	53.8	108	140

5:1 Design Factor. Maximum Proof Load is 2 times the Working Load Limit.
