G291 REGULAR NUT EYE BOLTS
RIGGING HARDWARE

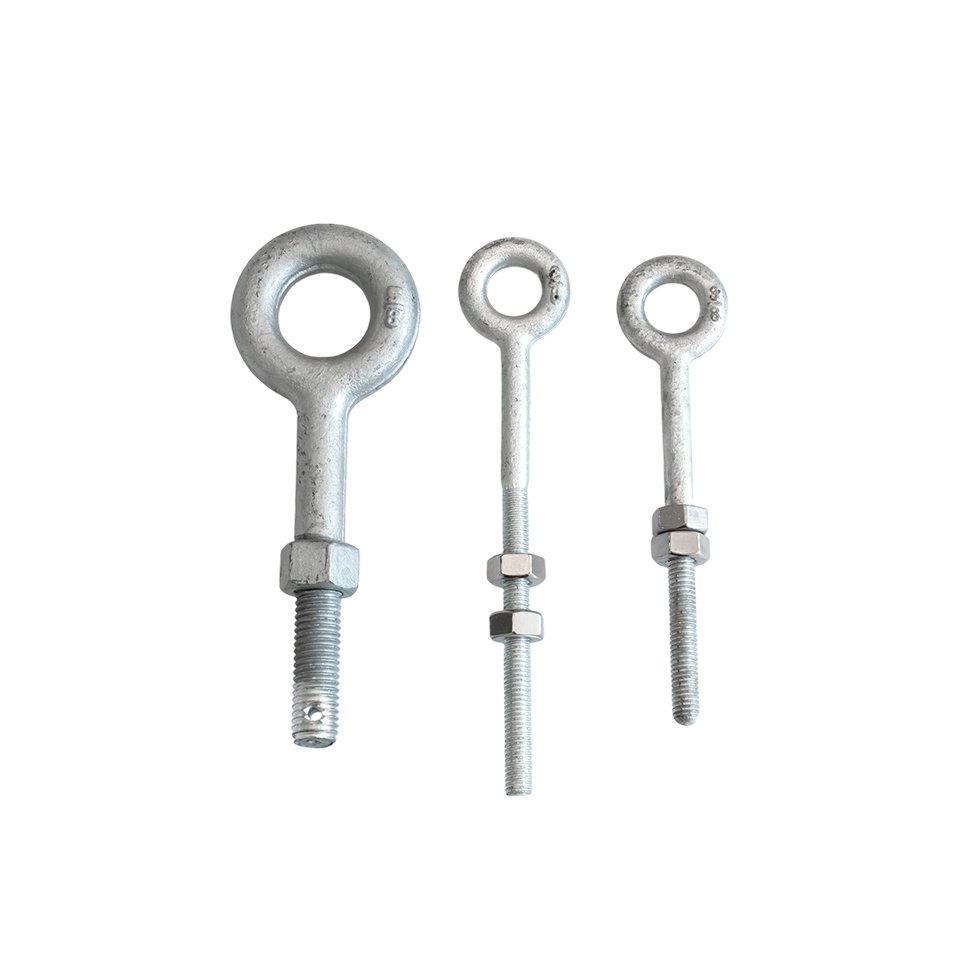

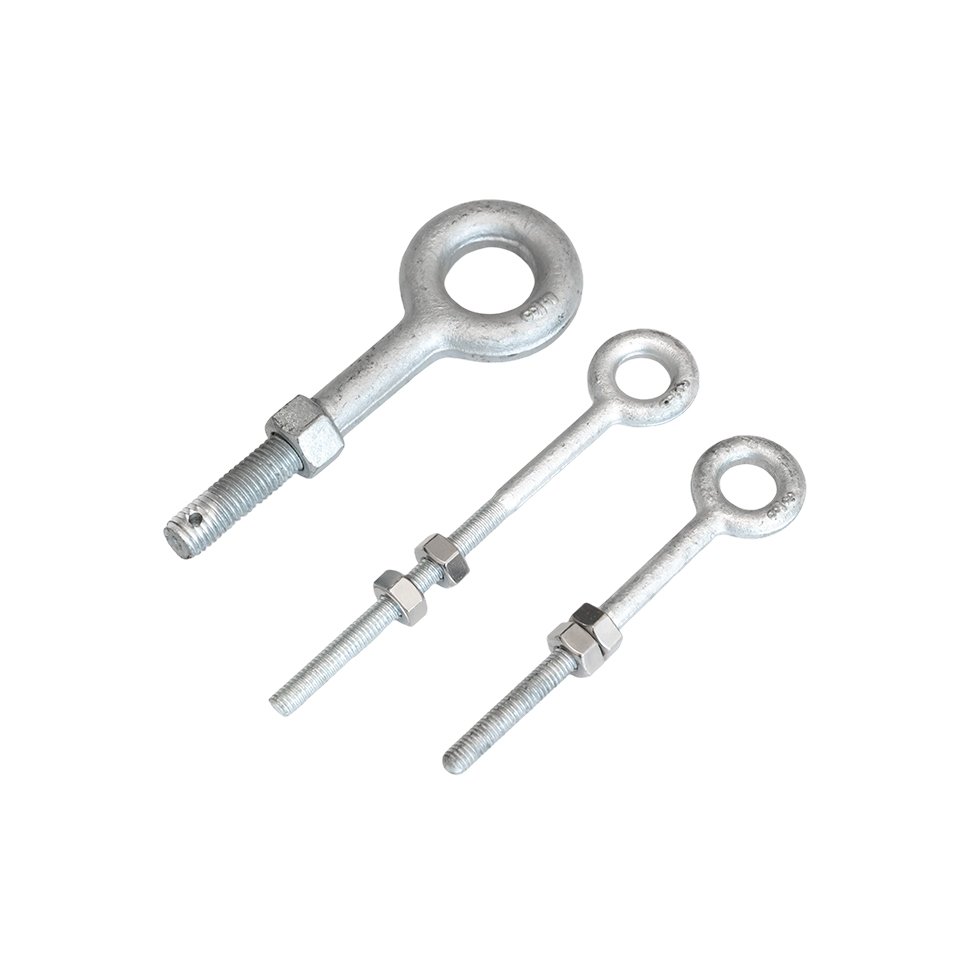

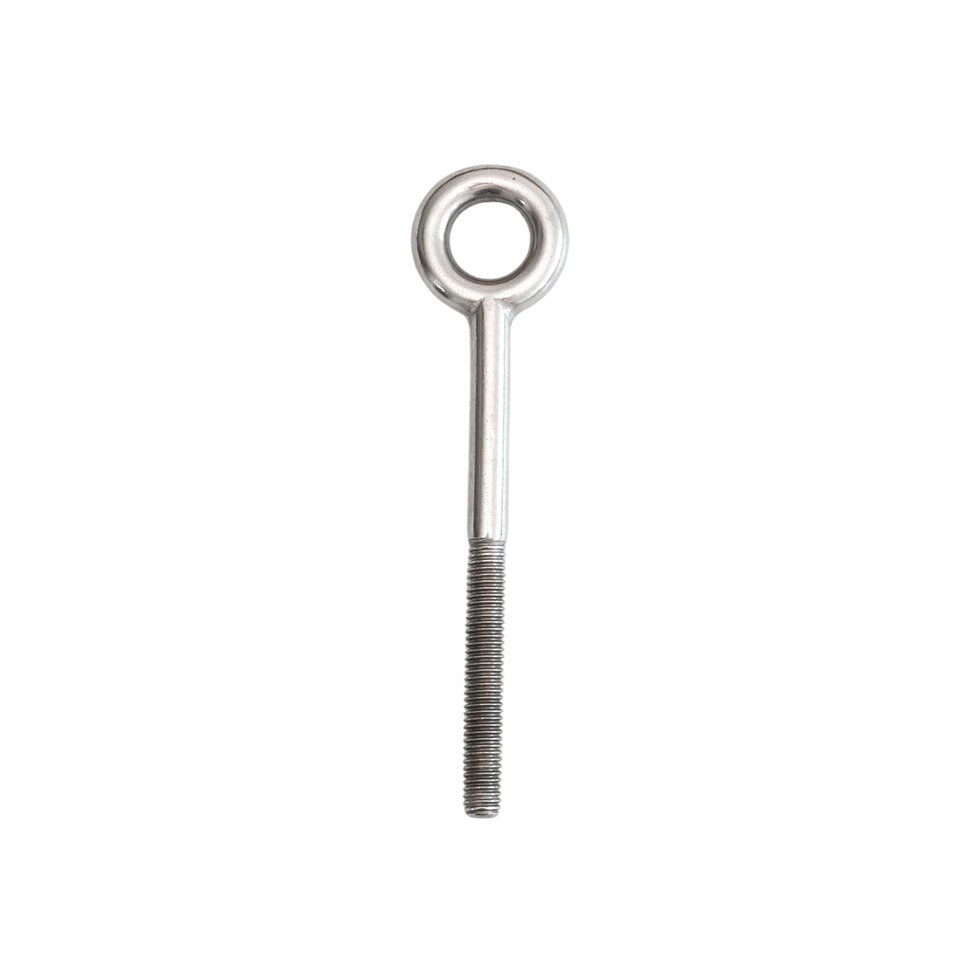

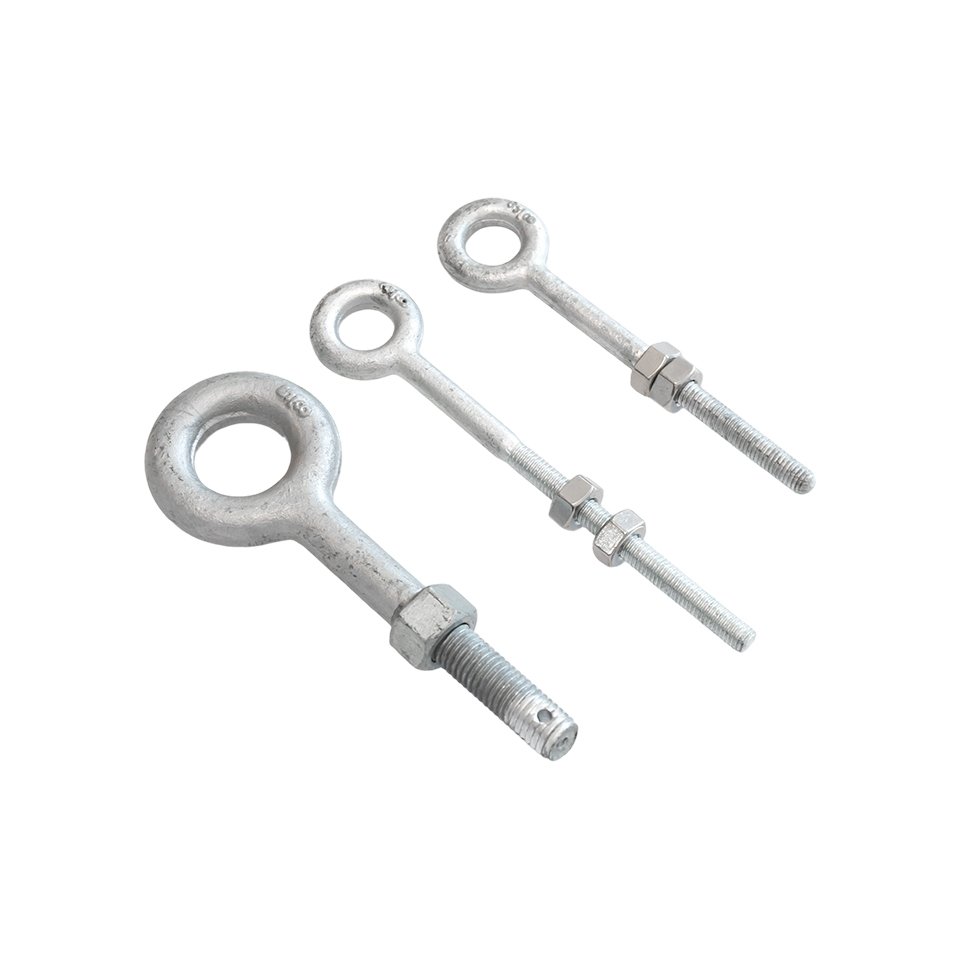

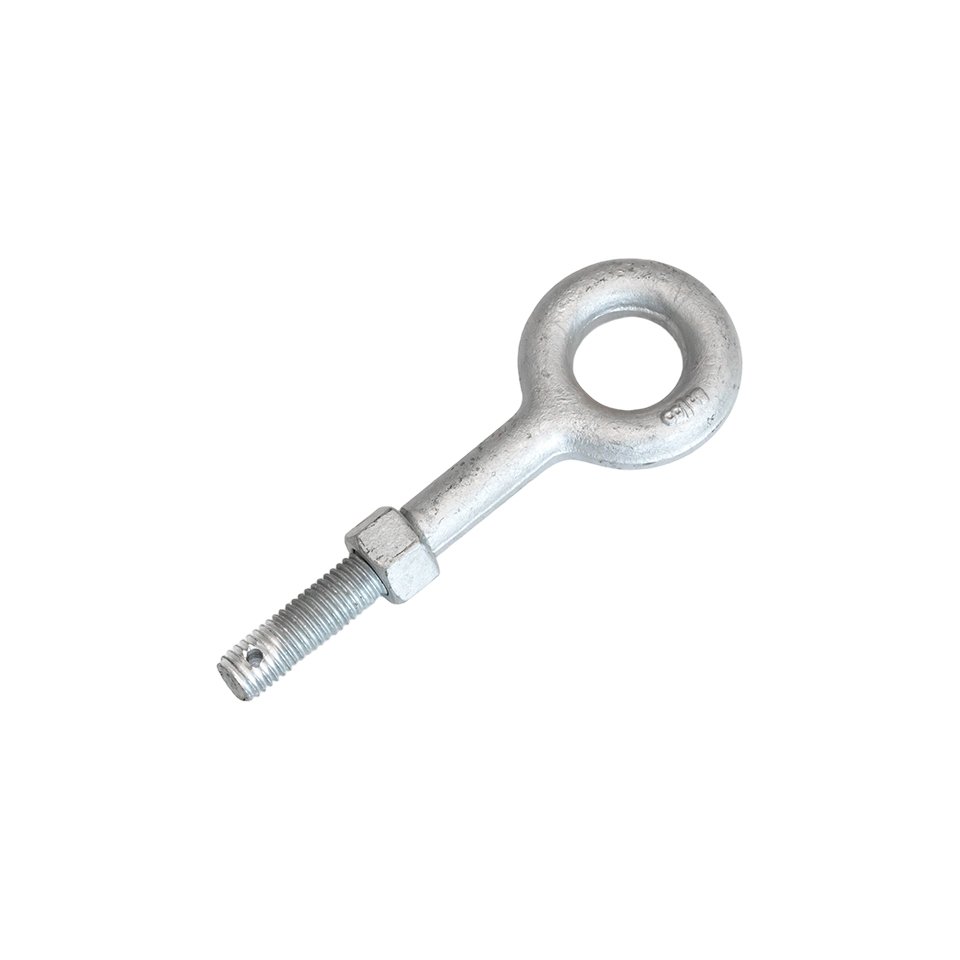

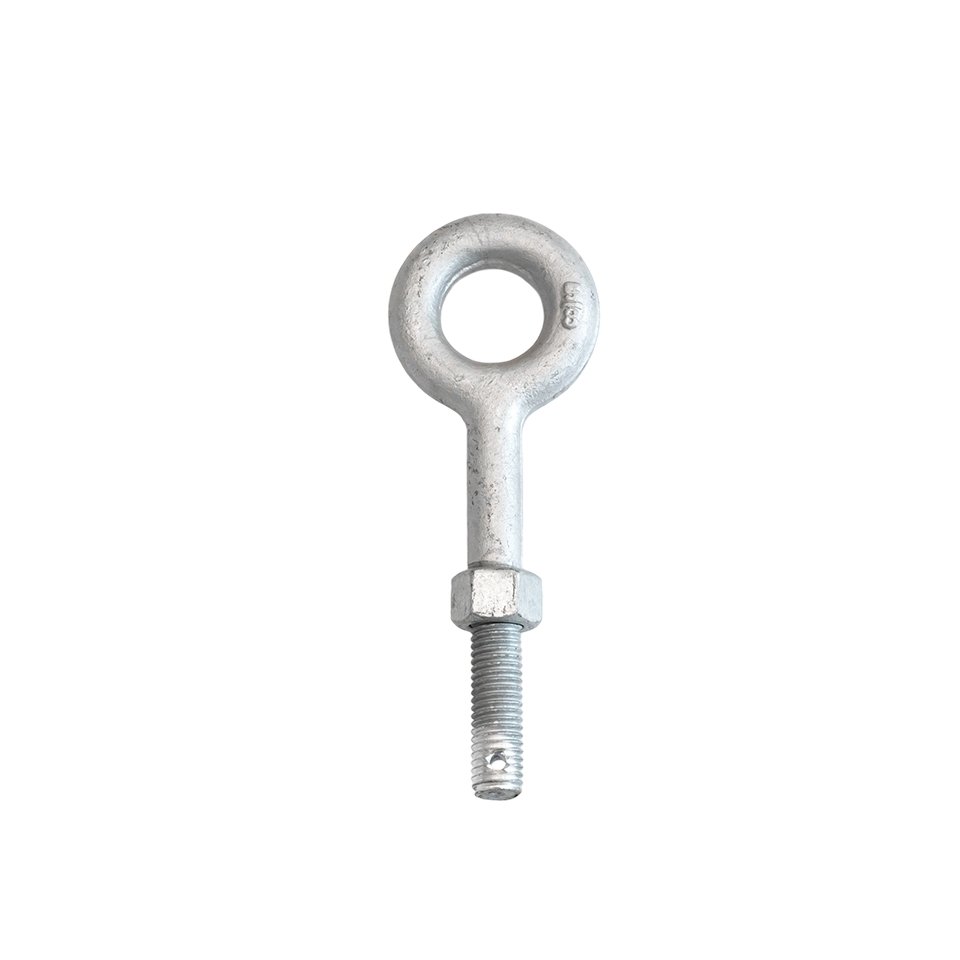

G291 REGULAR NUT EYE BOLTS
Item Number: #EB1001
• Forged Steel - Quenched and Tempered.
• Fatigue rated at 1-1/2 times the Working Load Limit at 20,000 cycles.
• All Bolts Hot Dip galvanized after threading (UNC).
• Furnished with standard Hot Dip galvanized hex nuts.
• DO NOT SIDE LOAD NON-SHOULDERED EYE BOLTS. Recommended for in-line pull.
• Please carefully read Warning and Application Information on attached pages or in the latest edition Crosby General Catalogue or by visiting www.thecrosbygroup.com.
• Meets or exceeds all requirements of ASME B30.26 including identification, ductility, design factor, proof load and temperature requirements. Importantly, these bolts meet other criticalperformance requirements including fatigue life, impact properties and material traceability, not addressed by ASME B30.26.
Product Details
Shank Dia. & Length (in.) | Working Load Limit (lbs.)* | Weight Per 100 (lbs.) | Dimensions (in.) | |||||||

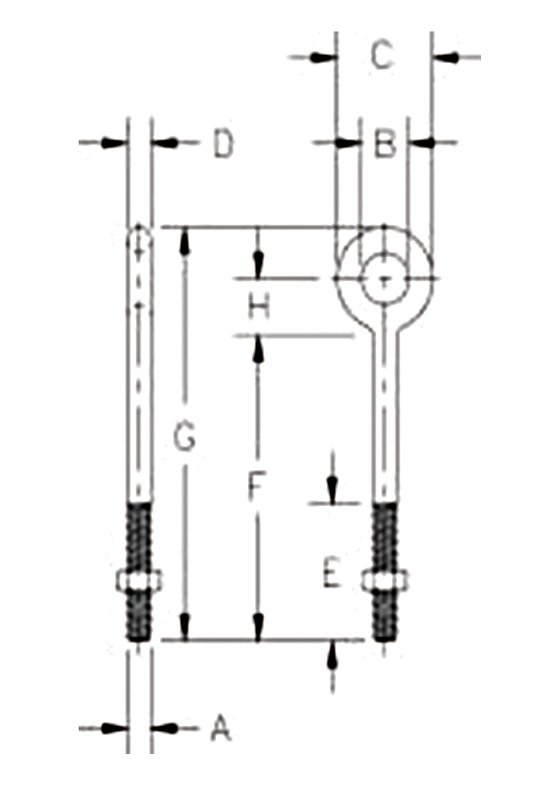

A | B | C | D | E | F | G | H | |||
1/4 x 2 | 650 | 8.20 | .25 | .50 | 1.00 | .25 | 1.50 | 2.00 | 3.06 | .56 |
1/4 x 4 | 650 | 11.70 | .25 | .50 | 1.00 | .25 | 2.50 | 4.00 | 5.06 | .56 |
5/16 x 2-1/4 | 1200 | 13.30 | .31 | .62 | 1.25 | .31 | 1.50 | 2.25 | 3.56 | .69 |
5/16 x 4-1/4 | 1200 | 25.00 | .31 | .62 | 1.25 | .31 | 2.50 | 4.25 | 5.56 | .69 |
3/8 x 2-1/2 | 1550 | 23.30 | .38 | .75 | 1.50 | .38 | 1.50 | 2.50 | 4.12 | .88 |
3/8 x 4-1/2 | 1550 | 29.50 | .38 | .75 | 1.50 | .38 | 2.50 | 4.50 | 6.12 | .88 |
3/8 x 6 | 1550 | 35.20 | .38 | .75 | 1.50 | .38 | 2.50 | 6.00 | 7.62 | .88 |
1/2 x 3-1/4 | 2600 | 50.30 | .50 | 1.00 | 2.00 | .50 | 1.50 | 3.25 | 5.38 | 1.12 |
1/2 x 6 | 2600 | 66.10 | .50 | 1.00 | 2.00 | .50 | 3.00 | 6.00 | 8.12 | 1.12 |
1/2 x 8 | 2600 | 82.00 | .50 | 1.00 | 2.00 | .50 | 3.00 | 8.00 | 10.12 | 1.12 |
1/2 x 10 | 2600 | 88.00 | .50 | 1.00 | 2.00 | .50 | 3.00 | 10.00 | 12.12 | 1.12 |
1/2 x 12 | 2600 | 114.20 | .50 | 1.00 | 2.00 | .50 | 3.00 | 12.00 | 14.12 | 1.12 |
5/8 x 4 | 5200 | 103.10 | .62 | 1.25 | 2.50 | .62 | 2.00 | 4.00 | 6.69 | 1.44 |
5/8 x 6 | 5200 | 118.20 | .62 | 1.25 | 2.50 | .62 | 3.00 | 6.00 | 8.69 | 1.44 |
5/8 x 8 | 5200 | 135.10 | .62 | 1.25 | 2.50 | .62 | 3.00 | 8.00 | 10.69 | 1.44 |
5/8 x 10 | 5200 | 153.60 | .62 | 1.25 | 2.50 | .62 | 3.00 | 10.00 | 12.69 | 1.44 |
5/8 x 12 | 5200 | 167.10 | .62 | 1.25 | 2.50 | .62 | 4.00 | 12.00 | 14.69 | 1.44 |
3/4 x 4-1/2 | 7200 | 168.60 | .75 | 1.50 | 3.00 | .75 | 2.00 | 4.50 | 7.69 | 1.69 |
3/4 x 6 | 7200 | 184.50 | .75 | 1.50 | 3.00 | .75 | 3.00 | 6.00 | 9.19 | 1.69 |
3/4 x 8 | 7200 | 207.90 | .75 | 1.50 | 3.00 | .75 | 3.00 | 8.00 | 11.19 | 1.69 |
3/4 x 10 | 7200 | 235.00 | .75 | 1.50 | 3.00 | .75 | 3.00 | 10.00 | 13.19 | 1.69 |
3/4 x 12 | 7200 | 257.50 | .75 | 1.50 | 3.00 | .75 | 4.00 | 12.00 | 15.19 | 1.69 |
3/4 x 15 | 7200 | 298.00 | .75 | 1.50 | 3.00 | .75 | 5.00 | 15.00 | 18.19 | 1.69 |
7/8 x 5 | 10600 | 270.00 | .88 | 1.75 | 3.50 | .88 | 2.50 | 5.00 | 8.75 | 2.00 |
7/8 x 8 | 10600 | 308.00 | .88 | 1.75 | 3.50 | .88 | 4.00 | 8.00 | 11.75 | 2.00 |
7/8 x 12 | 10600 | 400.00 | .88 | 1.75 | 3.50 | .88 | 4.00 | 12.00 | 15.75 | 2.00 |
1 x 6 | 13300 | 421.00 | 1.00 | 2.00 | 4.00 | 1.00 | 3.00 | 6.00 | 10.31 | 2.31 |
1 x 9 | 13300 | 468.50 | 1.00 | 2.00 | 4.00 | 1.00 | 4.00 | 9.00 | 13.31 | 2.31 |
1 x 12 | 13300 | 540.00 | 1.00 | 2.00 | 4.00 | 1.00 | 4.00 | 12.00 | 16.31 | 2.31 |
1 x 18 | 13300 | 650.00 | 1.00 | 2.00 | 4.00 | 1.00 | 7.00 | 18.00 | 22.31 | 2.31 |
1-1/4 x 8 | 21000 | 750.00 | 1.25 | 2.50 | 5.00 | 1.25 | 4.00 | 8.00 | 13.38 | 2.88 |
1-1/4 x 12 | 21000 | 900.00 | 1.25 | 2.50 | 5.00 | 1.25 | 4.00 | 12.00 | 17.38 | 2.88 |
1-1/4 x 20 | 21000 | 1210.00 | 1.25 | 2.50 | 5.00 | 1.25 | 6.00 | 20.00 | 25.38 | 2.88 |
*Ultimate Load is 5 times the Working Load Limit. Working Load Limit shown is for in-line pull. Maximum Proof Load is 2 times the Working Load Limit.
Review
Write a Review
Inquiry Now
Product Name:G291 REGULAR NUT EYE BOLTS
Related Products
G277 SHOULDER NUT EYE BOLTS
G277 SHOULDER NUT EYE BOLTS

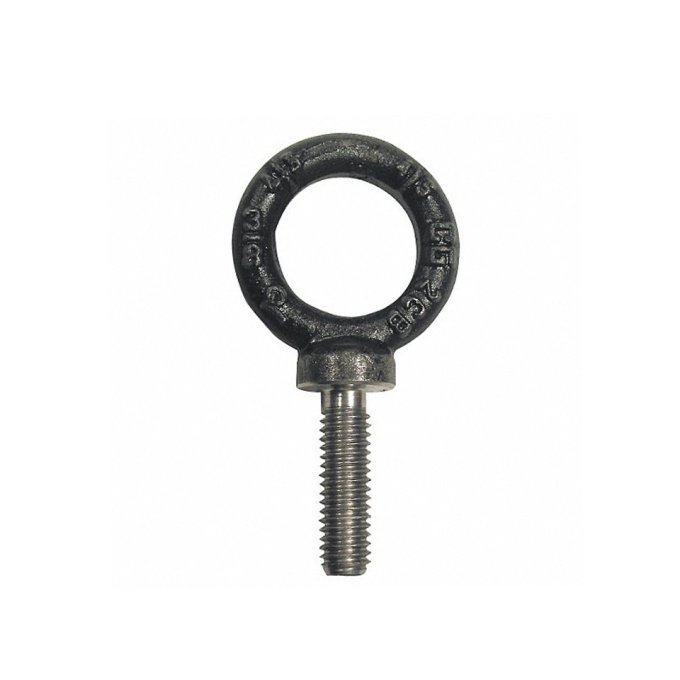

S279 SHOUDER TYPE EYE BOLTS
