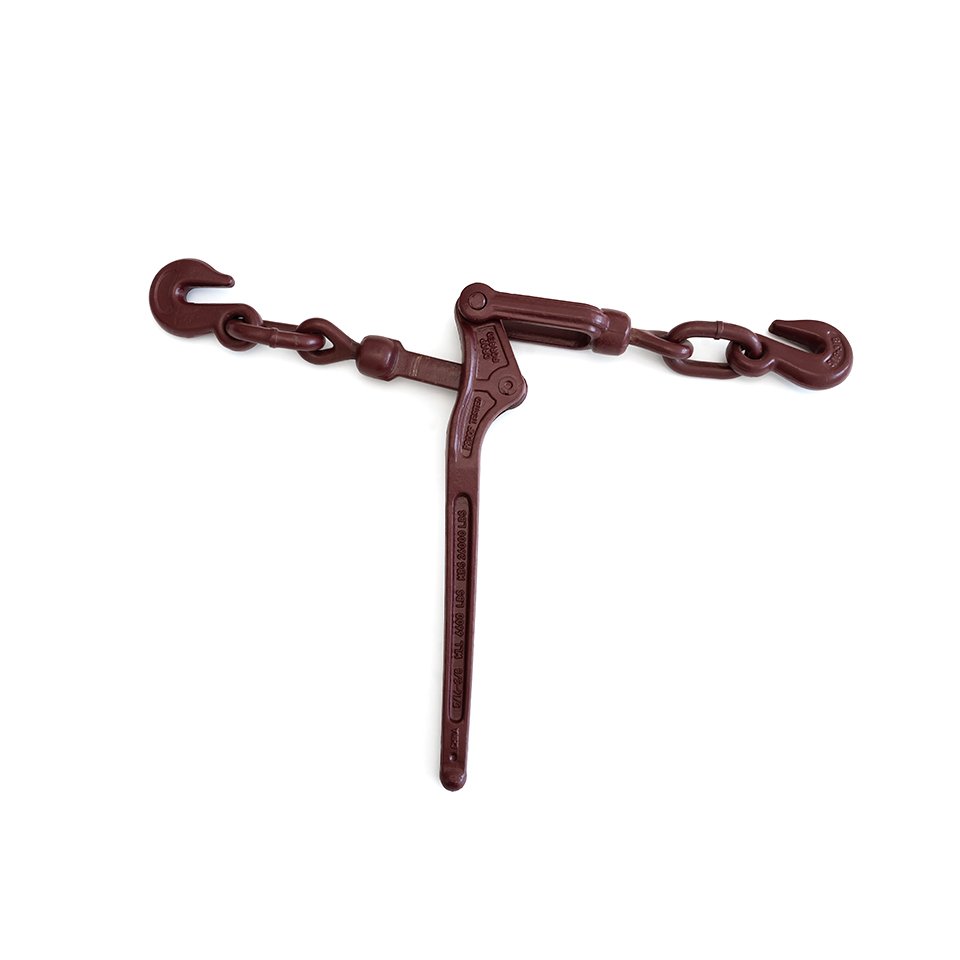

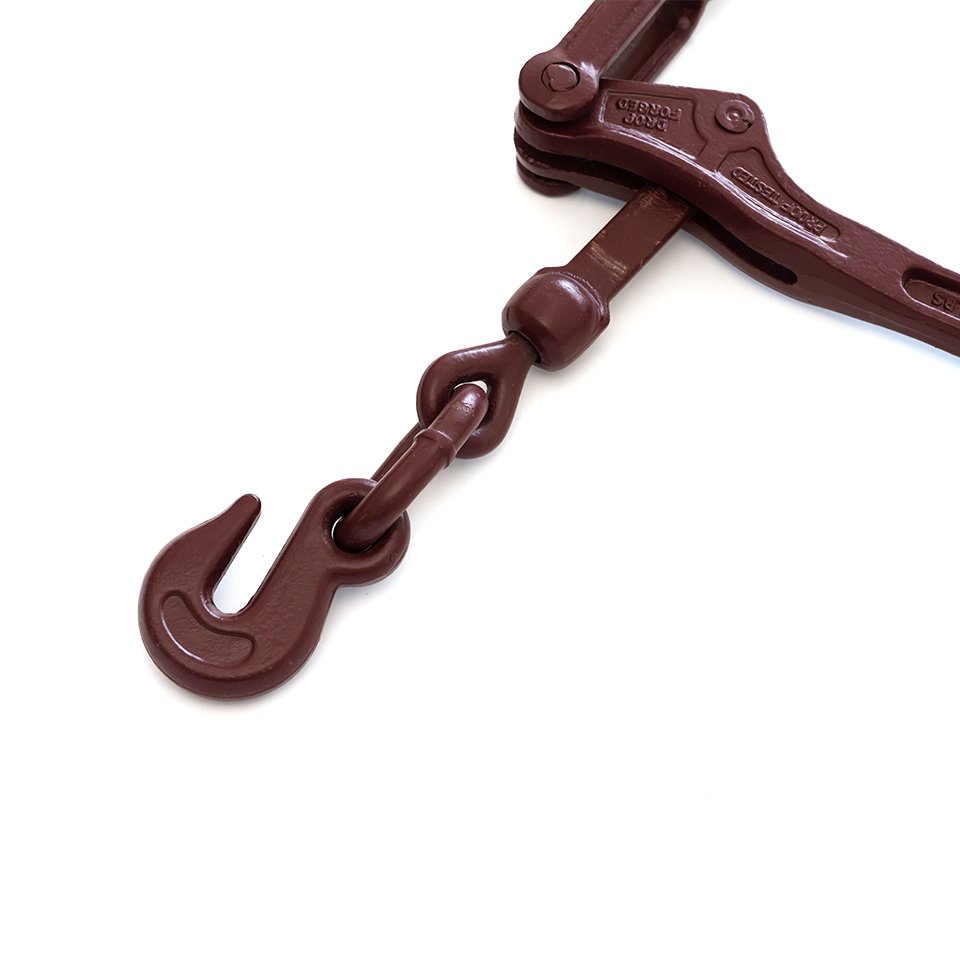

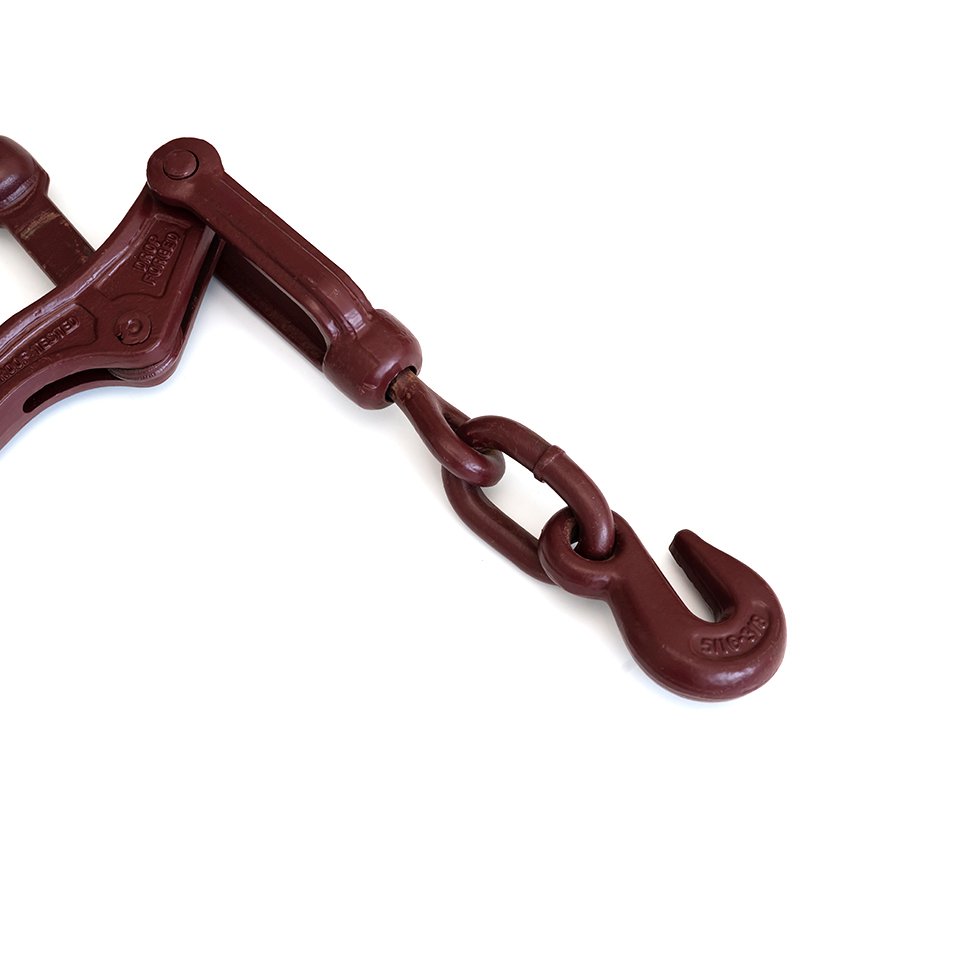

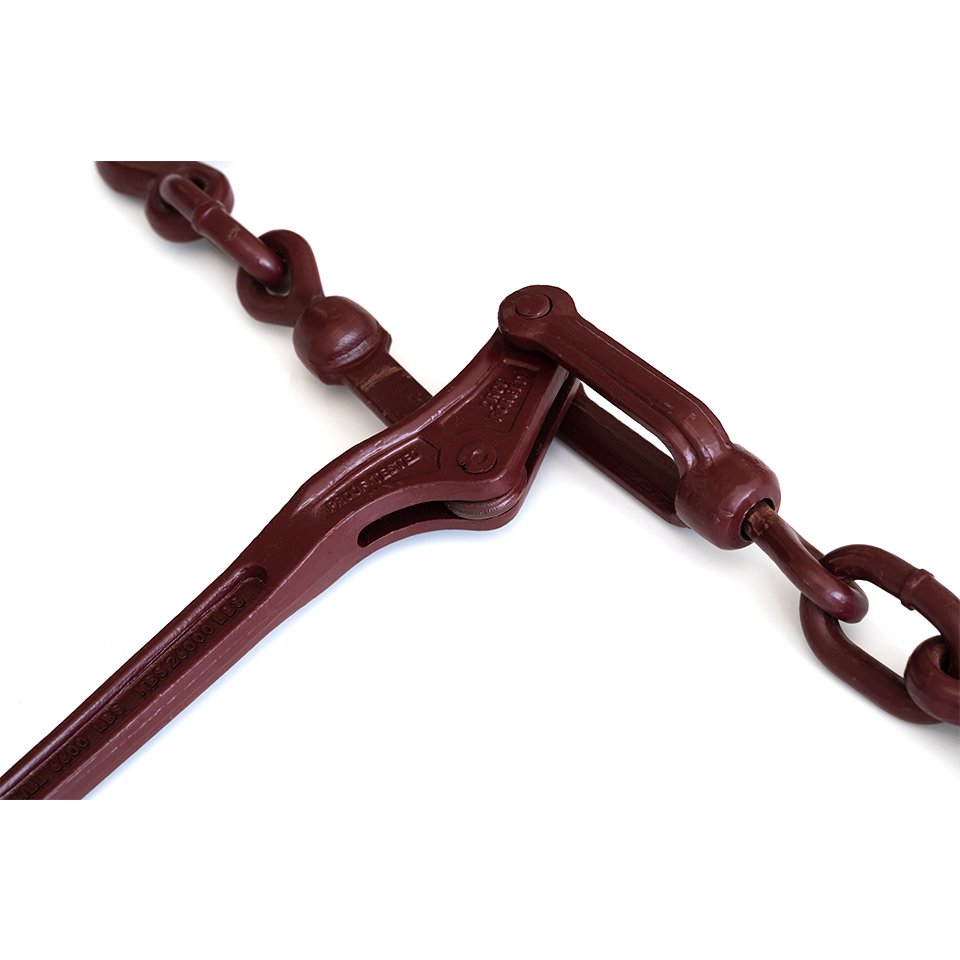

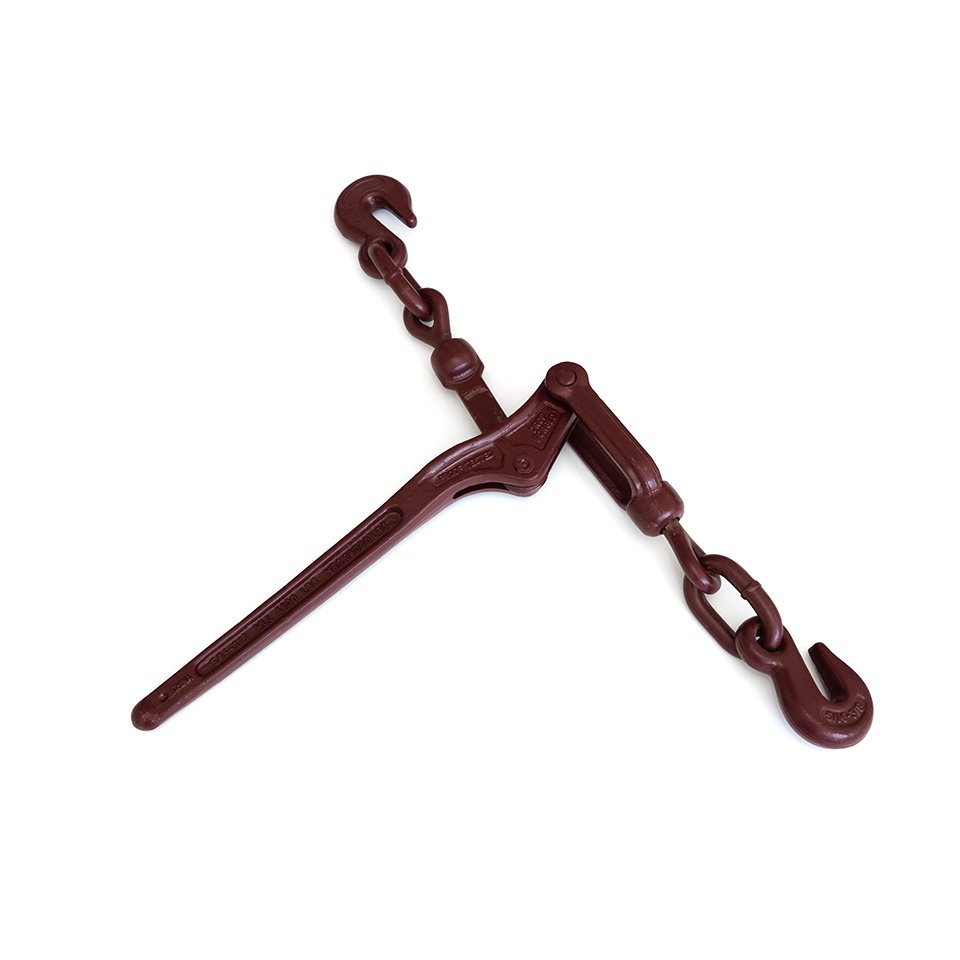

LEVER TYPE LOAD BINDERS
Product Details
| Min-Max Chain Size | Working Load Limit | Proof Load | Breaking Load | Weight Each | Handle Length | Dimensions(in) | ||||||
| (in) | (lbs) | (Ibs) | (Ibs) | (kg) | (in) | A | B | C | D | E | F | G |
| 1/4-5/16 | 2200 | 4400 | 7800 | 3-52 | 11.42 | 18.5 | 17.3 | 14.17 | 11.42 | 8.27 | 8.07 | 0.35 |
| 5/16-3/8 | 5400 | 10800 | 19000 | 8-37 | 15.43 | 25.2 | 23.2 | 19.49 | 15.55 | 11.22 | 11.22 | 0.51 |
| 3/8-1/2 | 9200 | 18400 | 28000 | 12-11 | 17.24 | 28.5 | 26.38 | 22.05 | 17.64 | 12.99 | 12.2 | 0.59 |
| 1/2-5/8 | 11000 | 22000 | 44000 | 19.7 | 21 | 33.86 | 30.12 | 25.87 | 20.87 | 14.37 | 14.37 | 0.74 |
Review
Write a Review
Inquiry Now
Product Name:LEVER TYPE LOAD BINDERS
Related Products

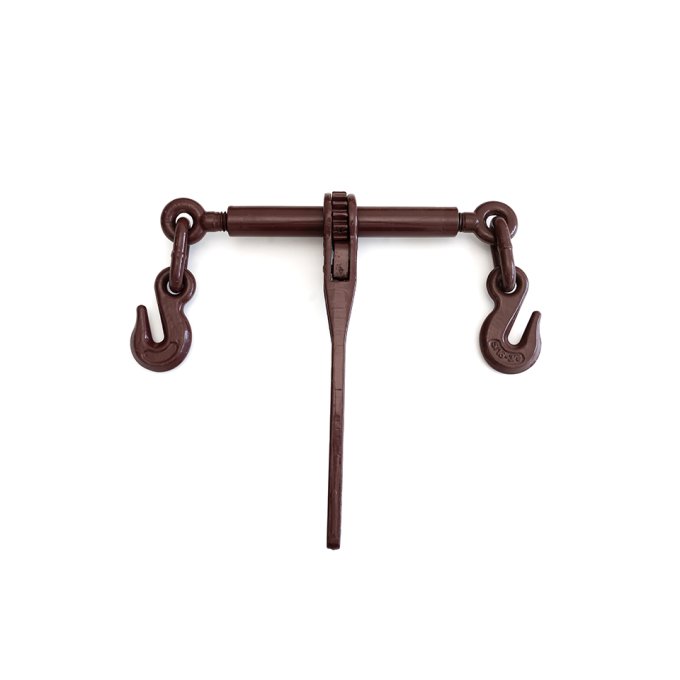

RACHET TYPE LOAD BINDERS
