G414 HEAVY DUTY WIRE ROPE THIMBLES
RIGGING HARDWARE

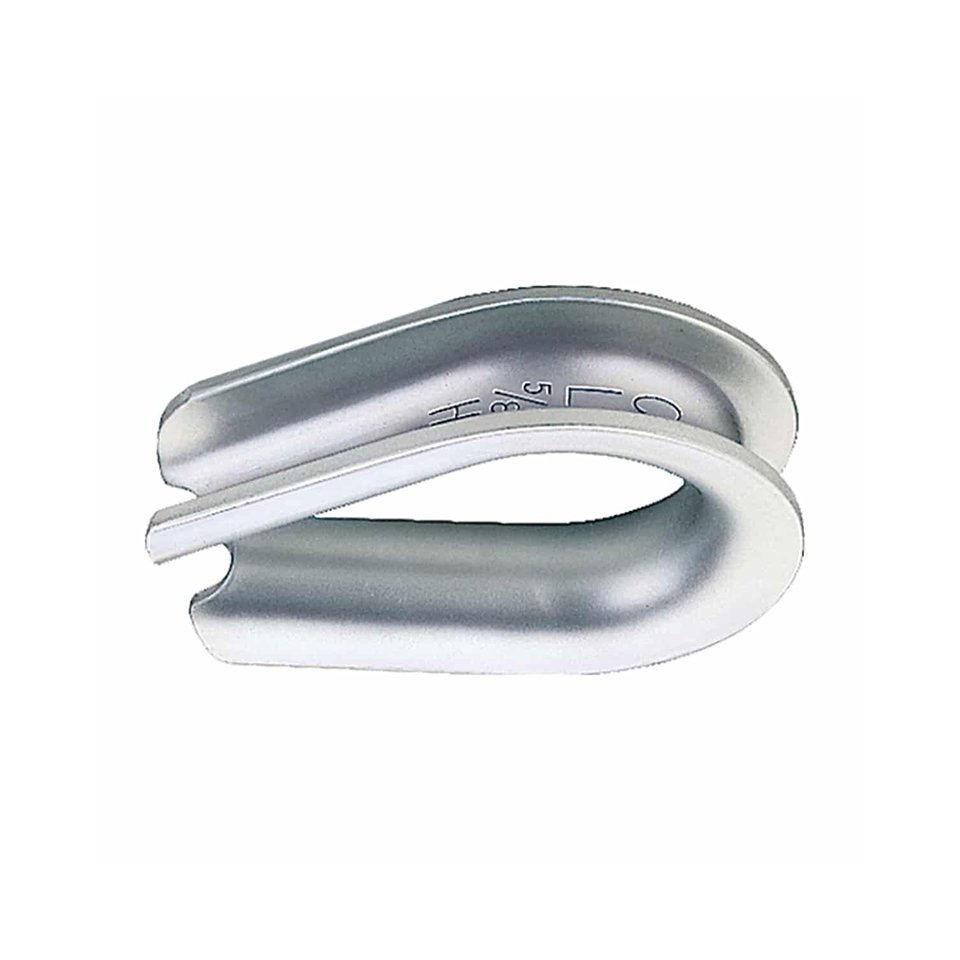

G414 HEAVY DUTY WIRE ROPE THIMBLES
ltem Number: #TH2001
• Available in hot-dip galvanized or stainless steel (Type 304).
• Stainless steel recommended for more corrosive environments where greater protection is required.
• Greater protection against wear and deformation of the wire rope eye.
• Longer service life.
• Meets the performance requirements of Federal Specification FF-T-276b Type III, except for those provisions required of the contractor.
Product Details

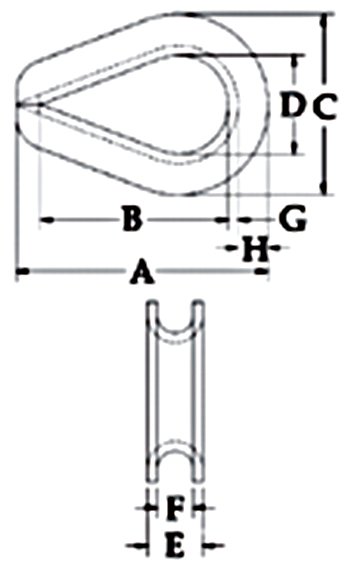

| Rope Diameter | Weight Per 100 | Dimensions(in) | ||||||||
| (in) | (mm) | (Ib) | A | B | C | D | E | F | G | H |
| 1/4 | 6-7 | 7 | 2.19 | 1.62 | 1.5 | 0.88 | 0.41 | 0.28 | 0.06 | 0.25 |
| 5/16 | 8 | 14 | 2.50 | 1.88 | 1.81 | 1.06 | .50 | .34 | .08 | .30 |
| 3/8 | 9-10 | 23 | 2.88 | 2.12 | 2.12 | 1.12 | .63 | .41 | .11 | .39 |
| 7/16 | 11-12 | 37 | 3.25 | 2.38 | 2.38 | 1.25 | .72 | .47 | .12 | .45 |
| 1/2-9/16 | 13-15 | 50 | 3.62 | 2.75 | 2.75 | 1.50 | .89 | 0.59 | 0.15 | .48 |
| 5/8 | 16 | 82 | 4.25 | 3.25 | 3.12 | 1.75 | 1.00 | .66 | .16 | .53 |
| 3/4 | 18-20 | 157 | 5.00 | 3.75 | 3.81 | 2.00 | 1.22 | .78 | .22 | .69 |
| 7/8 | 22 | 190 | 5.50 | 4.25 | 4.25 | 2.25 | 1.38 | .94 | .22 | 78 |
| 1 | 24-26 | 280 | 6.12 | 4.50 | 4.75 | 2.50 | 1.56 | 1.06 | .25 | .88 |
| 1-1/8-1-1/4 | 28-32 | - | 7.00 | 5.12 | 5.88 | 2.88 | 1.88 | 1.31 | .25 | 1.25 |
| 1-1/4-1-3/8 | 32-35 | 830 | 9.08 | 6.50 | 6.81 | 3.50 | 2.25 | 1.44 | 0.37 | 1.29 |
| 1-3/8-1-1/2 | 35-38 | 1250 | 9.00 | 6.25 | 7.12 | 3.50 | 2.62 | 1.56 | .50 | 1.31 |
| 1-5/8 | 40 | - | 11.25 | 8.00 | 8.12 | 4.00 | 3.00 | 1.72 | .50 | 1.38 |
| 1-3/4 | 44 | 1860 | 12.19 | 9.00 | 8.50 | 4.50 | 3.06 | 1.84 | .50 | 1.50 |
| 1-7/8-2 | 48-52 | 2780 | 15.12 | 12.00 | 10.38 | 6.00 | 3.38 | 2.09 | 0.50 | 1.69 |
| 2-1/4 | 56 | - | 17.50 | 14.00 | 11.88 | 7.00 | 3.88 | 2.38 | .62 | 1.82 |
