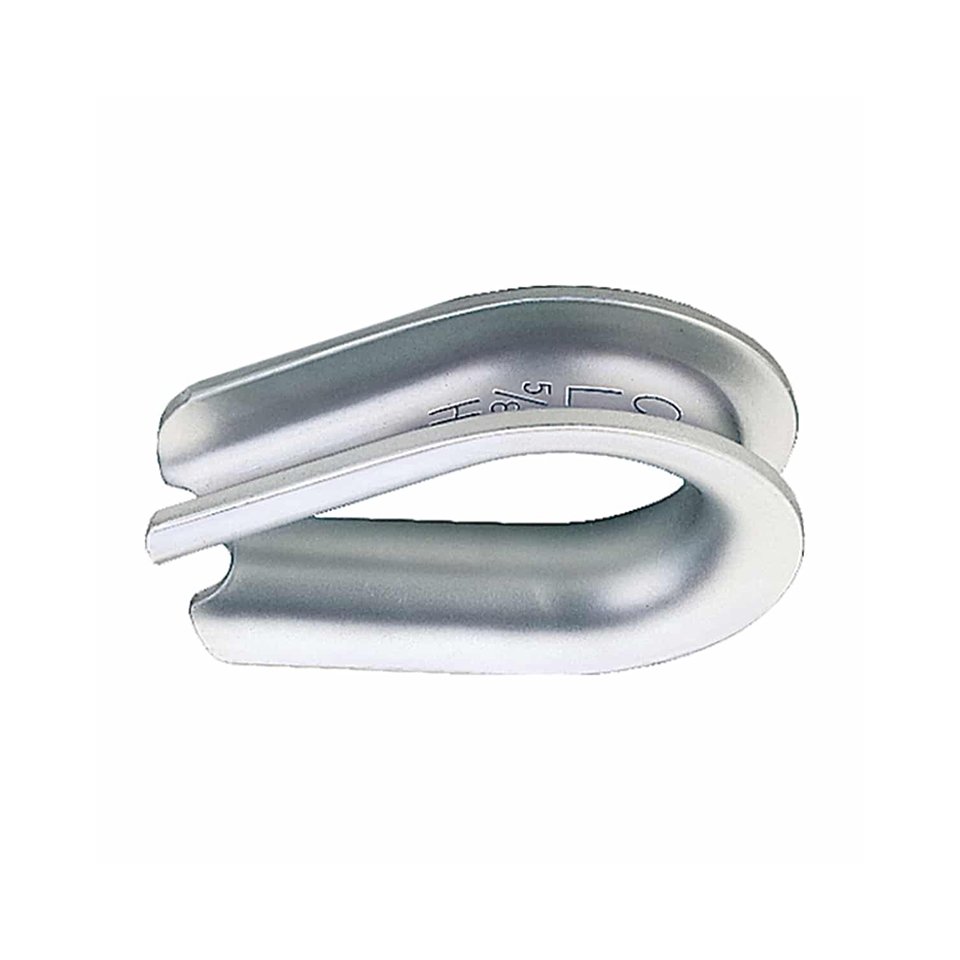

G411 STANDARD WIRE ROPE THIMBLES
RIGGING HARDWARE
G411 STANDARD WIRE ROPE THIMBLES
Item Number: #TH2002
• Hot-dip galvanized steel.
• The standard choice for light duty loading conditions and applications.
• Meets the performance requirements of Federal Specification FF-T-276b Type II, except for those provisions required of the contractor.
Product Details
G411 Standard Wire Rope Thimbles are designed to maintain wire rope integrity in lifting, rigging, and general industrial applications. Made from high-quality steel, these thimbles prevent wear and deformation at connection points, extending the lifespan of wire ropes.

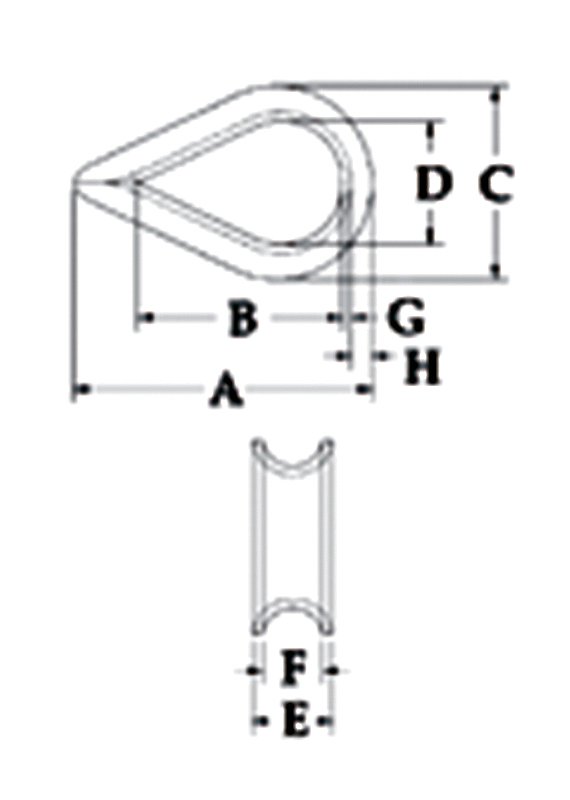

Rope Diameter | Weight Per 100 (lb) | Dimensions (in) | ||||||||
(in) | (mm) | A | B | C | D | E | F | G | H | |
1/8 | 3-4 | 3.50 | 1.94 | 1.31 | 1.06 | .69 | .25 | .16 | .05 | .13 |
3/16 | 5 | 3.50 | 1.94 | 1.31 | 1.06 | .69 | .31 | .22 | .05 | .13 |
1/4 | 6-7 | 3.50 | 1.94 | 1.31 | 1.06 | .69 | .38 | .28 | .05 | .13 |
5/16 | 8 | 4.00 | 2.13 | 1.50 | 1.25 | .81 | .44 | .34 | .05 | .13 |
3/8 | 9-10 | 6.70 | 2.38 | 1.63 | 1.47 | .94 | .53 | .41 | .06 | .16 |
1/2 | 11-13 | 12.50 | 2.75 | 1.88 | 1.75 | 1.13 | .69 | .53 | .08 | .19 |
5/8 | 16 | 34.50 | 3.50 | 2.25 | 2.38 | 1.38 | .91 | .66 | .13 | .34 |
3/4 | 18-20 | 47.10 | 3.75 | 2.50 | 2.69 | 1.63 | 1.08 | .78 | .14 | .34 |
7/8 | 22 | 84.60 | 5.00 | 3.50 | 3.19 | 1.88 | 1.27 | .94 | .16 | .44 |
1 | 24-26 | 97.50 | 5.69 | 4.25 | 3.75 | 2.50 | 1.39 | 1.06 | .16 | .41 |
1-1/8 - 1-1/4 | 28-32 | 175.00 | 6.25 | 4.50 | 4.31 | 2.75 | 1.75 | 1.31 | .22 | .50 |
