G213 ROUND PIN ANCHOR SHACKLES
RIGGING HARDWARE
G213 ROUND PIN ANCHOR SHACKLES
Item Number: #S2102
• Forged, Quenched & Tempered, with alloy pins.
• Working Load Limit permanently shown on every shackle. Hot-dip galvanized (G) or self colored (S).
• Sizes 3/8 inch and below are mechanically galvanized.
• Fatigue rated to 20,000 cycles at 1-1/2 times the Working Load Limit.
• Shackles can be furnished proof tested with certificates to designated.
• standards, such as ABS, DNV, Lloyds, or other certification. Charges for proof testing and certification available when requested at the time of order. Shackles are Quenched & Tempered and can meet DNV impact requirements of 42 Joules (31 ft-Ib) at -20° C (-4° F).
• G-213 Round pin anchor shackles meet the performance requirements of Federal Specification RR-C-271H, Type IVA, Grade A, Class 1, except for those provisions required of the contractor.
• DO NOT SIDE LOAD ROUND PIN SHACKLES.
• Look for the Red Pin® ... the mark of genuine Crosby quality.
Product Details

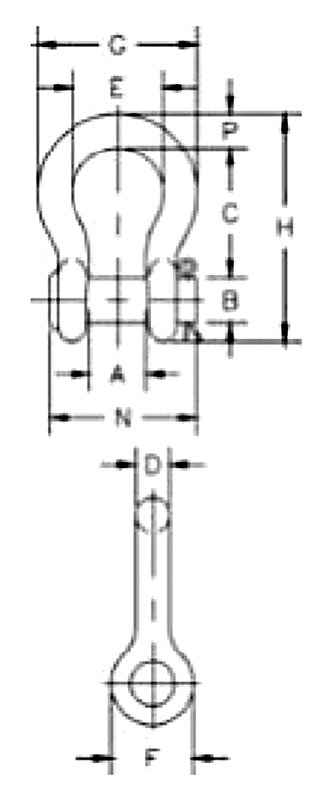

Nominal Size (in) | Working Load Limit (t) | Weight Each (lb) | Dimensions (in) | Tolerance (+ / - in) | ||||||||||
A | B | C | D | E | F | G | H | N | P | C | A | |||
1/4 | 0.5 | .13 | .47 | .31 | 1.13 | .25 | .78 | .61 | 1.28 | 1.84 | 1.34 | .25 | .06 | .06 |
5/16 | 0.75 | .18 | .53 | .38 | 1.22 | .31 | .84 | .75 | 1.47 | 2.09 | 1.59 | .31 | .06 | .06 |
3/8 | 1 | .29 | .66 | .44 | 1.44 | .38 | 1.03 | .91 | 1.78 | 2.49 | 1.86 | .38 | .13 | .06 |
7/16 | 1.5 | .38 | .75 | .50 | 1.69 | .44 | 1.16 | 1.06 | 2.03 | 2.91 | 2.13 | .44 | .13 | .06 |
1/2 | 2 | .71 | .81 | .63 | 1.88 | .50 | 1.31 | 1.19 | 2.31 | 3.28 | 2.38 | .50 | .13 | .06 |
5/8 | 3.25 | 1.50 | 1.06 | .75 | 2.38 | .63 | 1.69 | 1.50 | 2.94 | 4.19 | 2.91 | .69 | .13 | .06 |
3/4 | 4.75 | 2.32 | 1.25 | .88 | 2.81 | .75 | 2.00 | 1.81 | 3.50 | 4.97 | 3.44 | .81 | .25 | .06 |
7/8 | 6.5 | 3.49 | 1.44 | 1.00 | 3.31 | .88 | 2.28 | 2.09 | 4.03 | 5.83 | 3.81 | .97 | .25 | .06 |
1 | 8.5 | 5.00 | 1.69 | 1.13 | 3.75 | 1.00 | 2.69 | 2.38 | 4.69 | 6.56 | 4.53 | 1.06 | .25 | .06 |
1-1/8 | 9.5 | 6.97 | 1.81 | 1.25 | 4.25 | 1.13 | 2.91 | 2.69 | 5.16 | 7.47 | 5.13 | 1.25 | .25 | .06 |
1-1/4 | 12 | 9.75 | 2.03 | 1.38 | 4.69 | 1.29 | 3.25 | 3.00 | 5.75 | 8.25 | 5.50 | 1.38 | .25 | .06 |
1-3/8 | 13.5 | 13.25 | 2.25 | 1.50 | 5.25 | 1.42 | 3.63 | 3.31 | 6.38 | 9.16 | 6.13 | 1.50 | .25 | .13 |
1-1/2 | 17 | 17.25 | 2.38 | 1.63 | 5.75 | 1.54 | 3.88 | 3.63 | 6.88 | 10.00 | 6.50 | 1.62 | .25 | .13 |
1-3/4 | 25 | 29.46 | 2.88 | 2.00 | 7.00 | 1.84 | 5.00 | 4.19 | 8.86 | 12.34 | 7.75 | 2.25 | .25 | .13 |
2 | 35 | 45.75 | 3.25 | 2.25 | 7.75 | 2.08 | 5.75 | 4.81 | 9.97 | 13.68 | 8.75 | 2.40 | .25 | .13 |
6:1 Design Factor. Maximum Proof Load is 2 times the Working Load Limit.
