PRECAST CONCRET LIFTING RING
Product Details

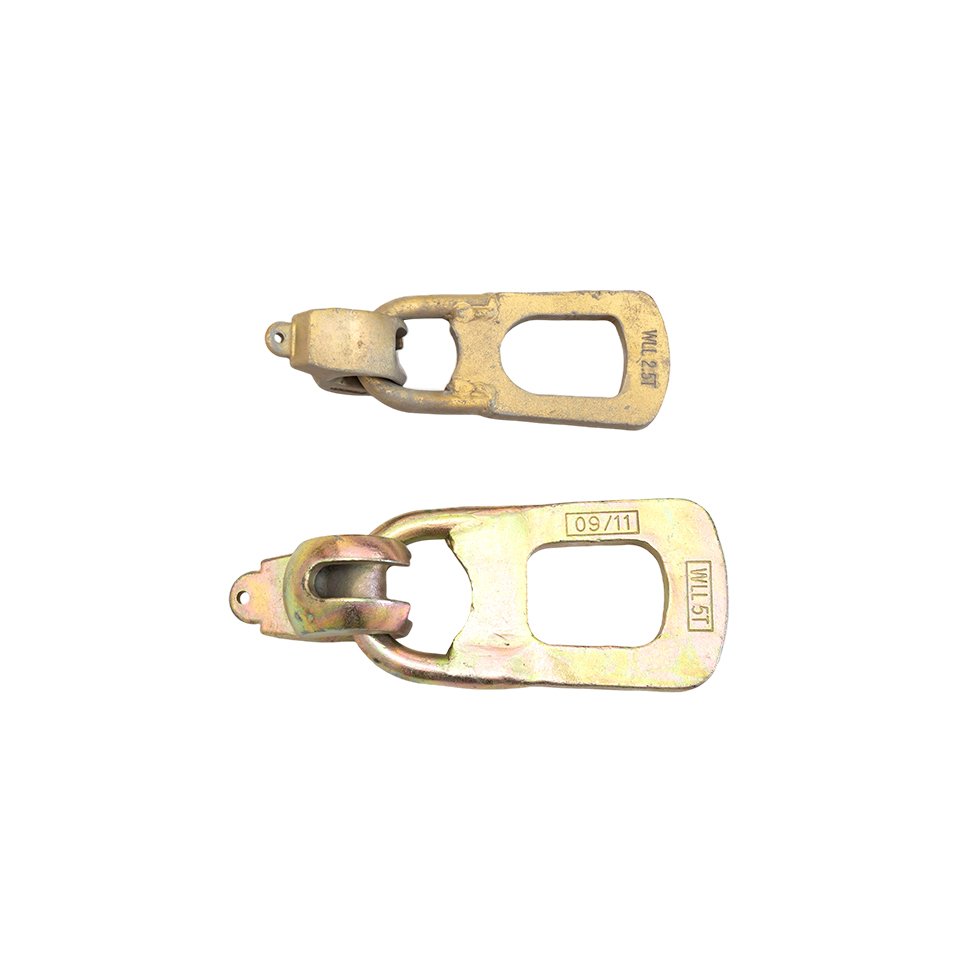

Precast Concrete Lifting Ring is a high strength construction accessory designed for safe lifting and transportation of precast concrete elements. Manufactured from forged alloy steel with surface treatment for corrosion resistance, the lifting ring guarantees stability, safety, and long-term performance in heavy-duty applications.
| Capacity(kg) | A(mm) | B(mm) | C(mm) | E(mm) | F(mm) | G(mm) |
| 1300 | 47.5 | 75 | 71 | 41 | 33 | 165 |
| 2500 | 64 | 98 | 85 | 55 | 42 | 205 |
| 5000 | 70 | 118 | 88 | 66 | 57 | 240 |
| 10000 | 95 | 150 | 121 | 117.5 | 73 | 345.5 |
| 20000 | 118 | 186 | 150 | 155 | 110 | 441 |
Review
Write a Review
Inquiry Now
Product Name:PRECAST CONCRET LIFTING RING
Related Products

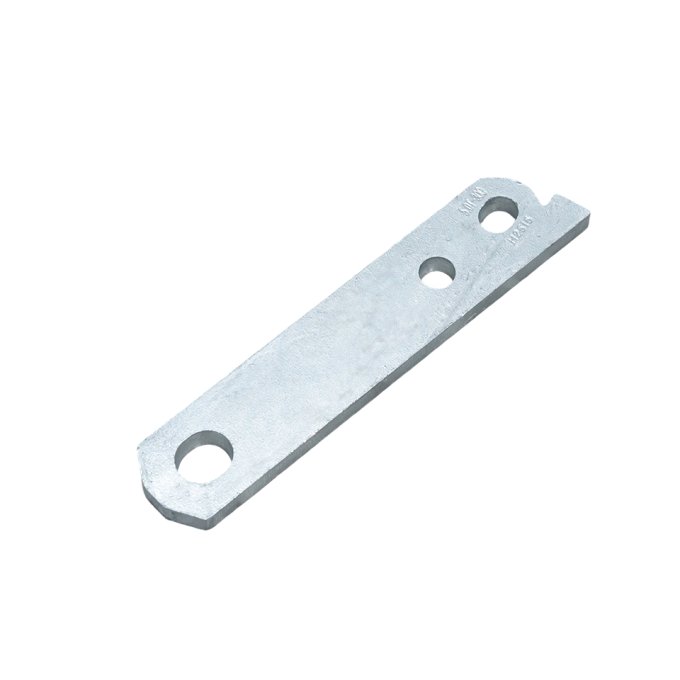

LIFTING ERACTION ANCHOR
LIFTING ERACTION ANCHOR

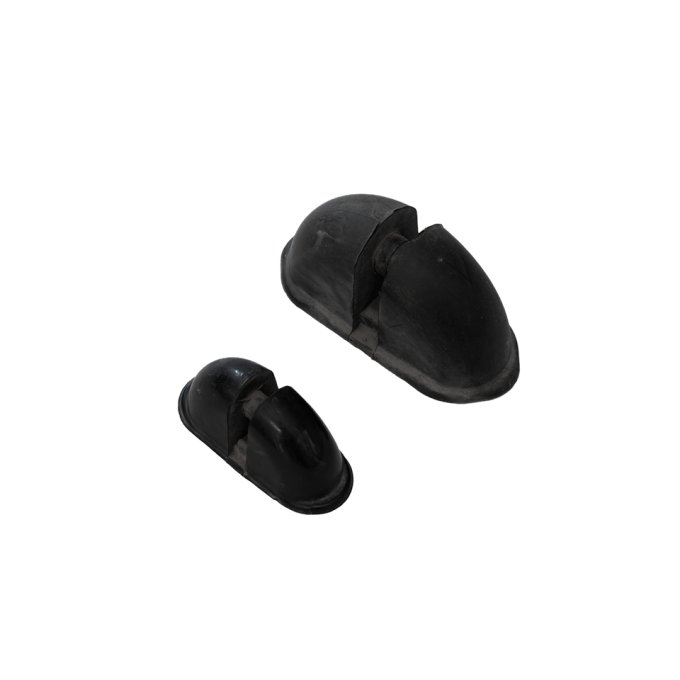

PRECISION RUBBER RECESS FORMER
PRECISION RUBBER RECESS FORMER
ANCHOR CHANNEL
ANCHOR CHANNEL

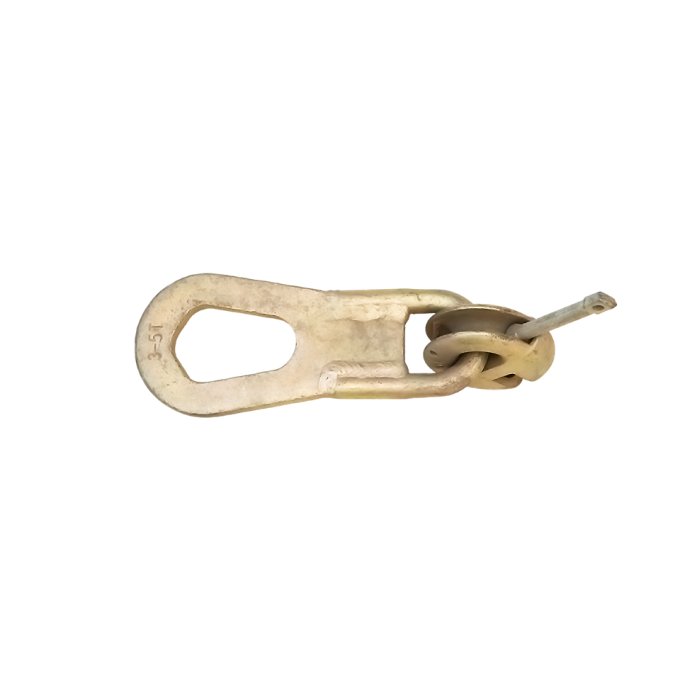

RING LIFT HARDWARE
