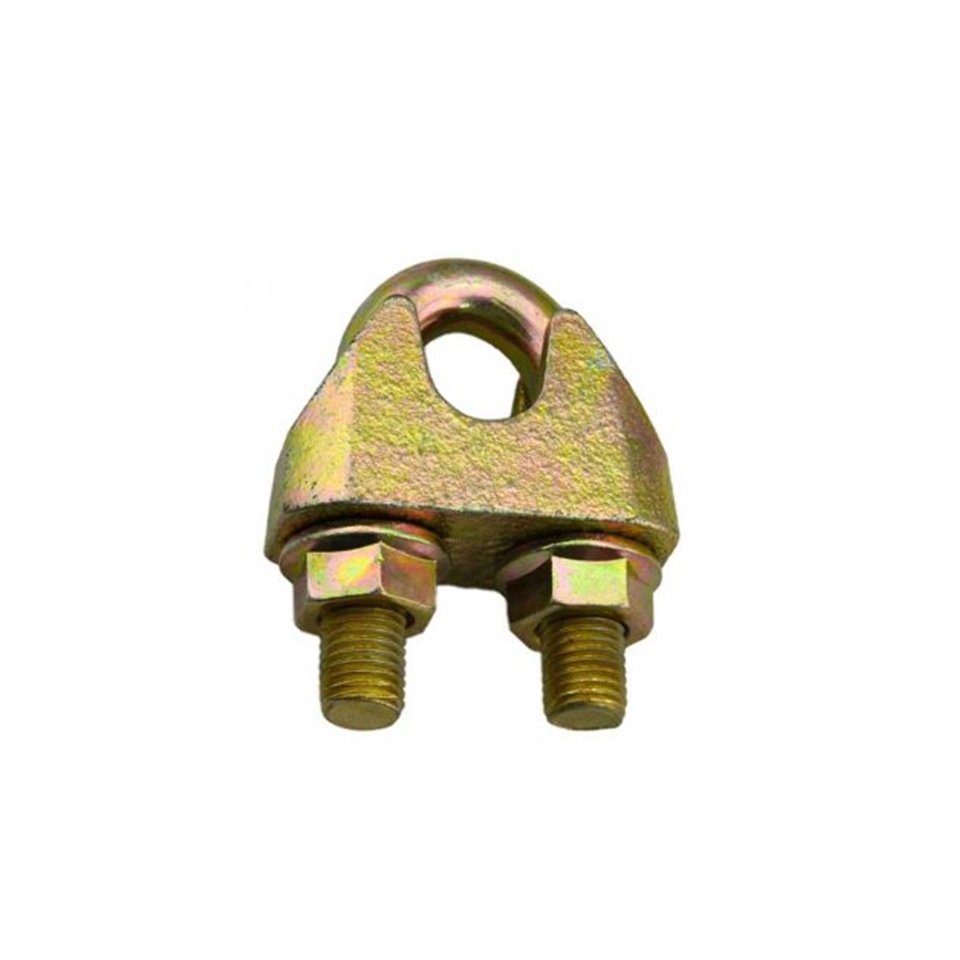

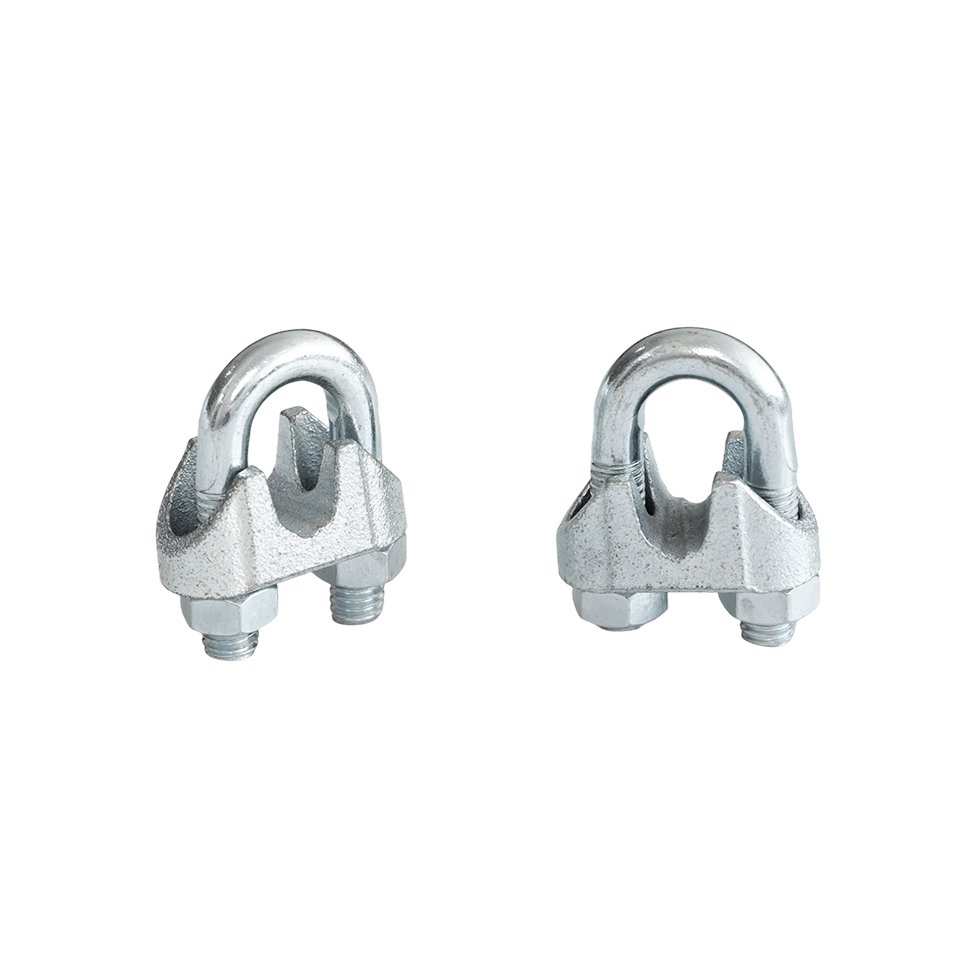

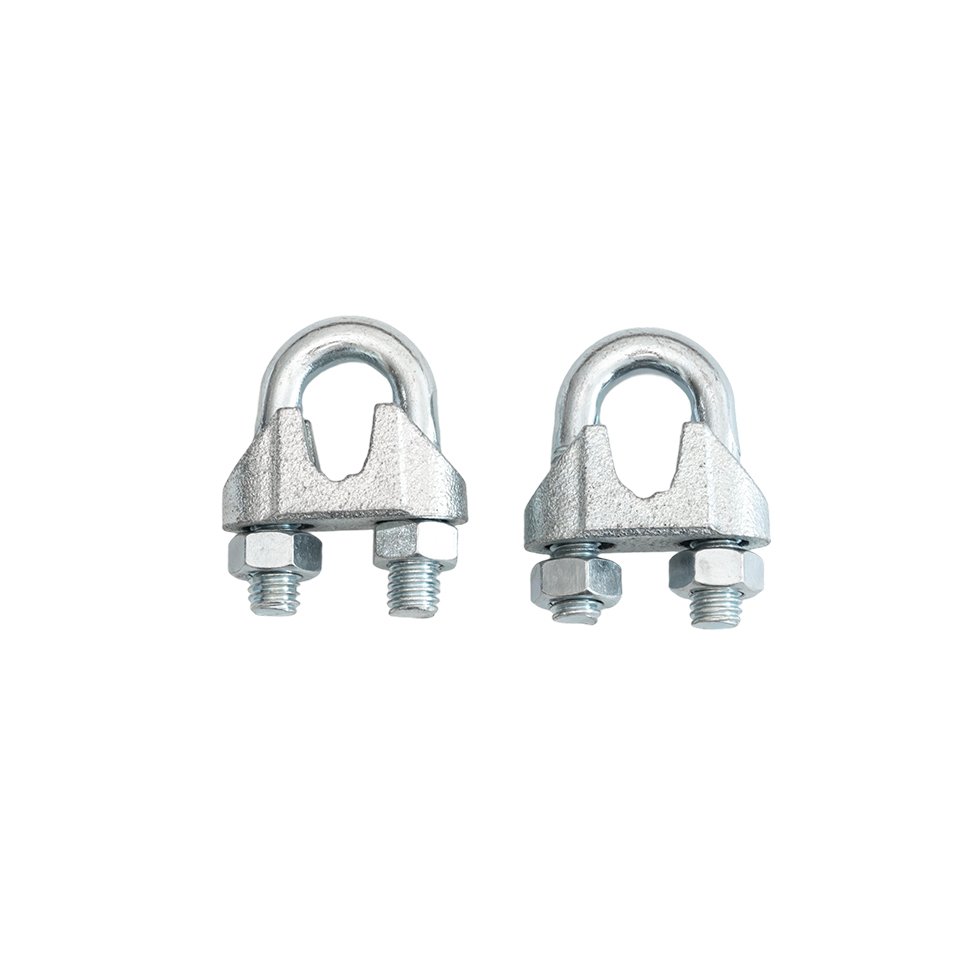

DIN 1142 MALLEABLE WIRE ROPE CLIPS
Product Details

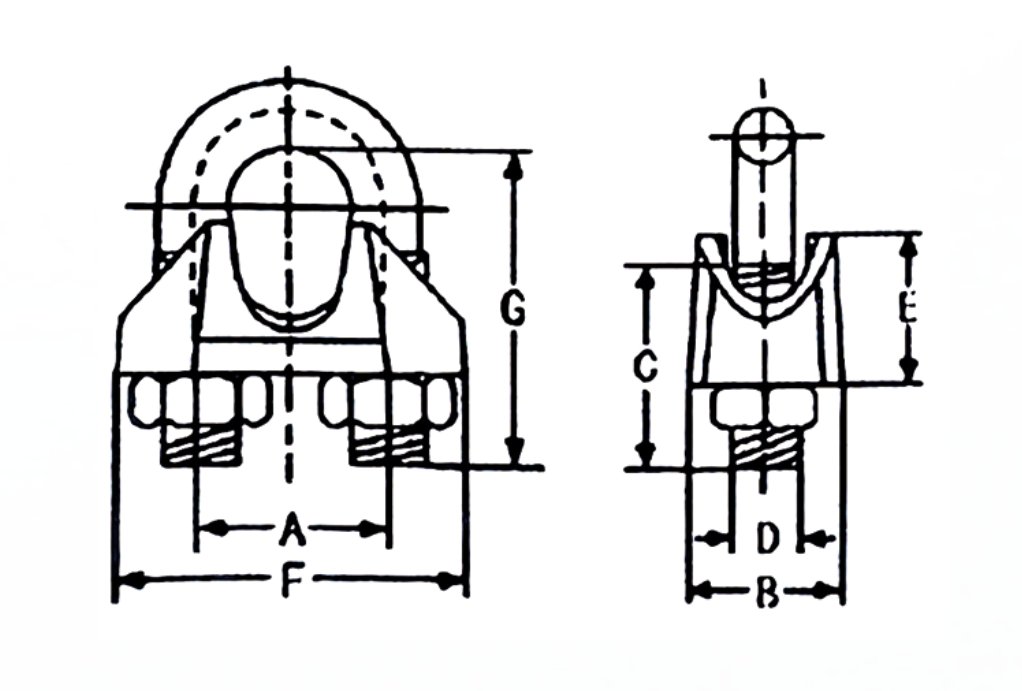

| RopeSize | Weight Each | Dimensions(mm) | |||||
| (mm) | (kg/pc) | A | B | C | D | F | G |
| 5 | 0.021 | 12 | 13 | 13 | 5 | 25 | 25 |
| 6.5 | 0.04 | 14 | 16 | 14 | 6 | 30 | 32 |
| 8 | 0.082 | 18 | 20 | 20 | 8 | 39 | 41 |
| 10 | 0.092 | 20 | 20 | 24 | 8 | 40 | 46 |
| 13 | 0.275 | 27 | 28 | 30 | 12 | 55 | 64 |
| 16 | 0.430 | 32 | 32 | 35 | 14 | 64 | 76 |
| 19 | 0.490 | 36 | 32 | 36 | 14 | 68 | 83 |
| 22 | 0.680 | 40 | 34 | 40 | 16 | 74 | 96 |
Review
Write a Review
Inquiry Now
Product Name:DIN 1142 MALLEABLE WIRE ROPE CLIPS
Related Products

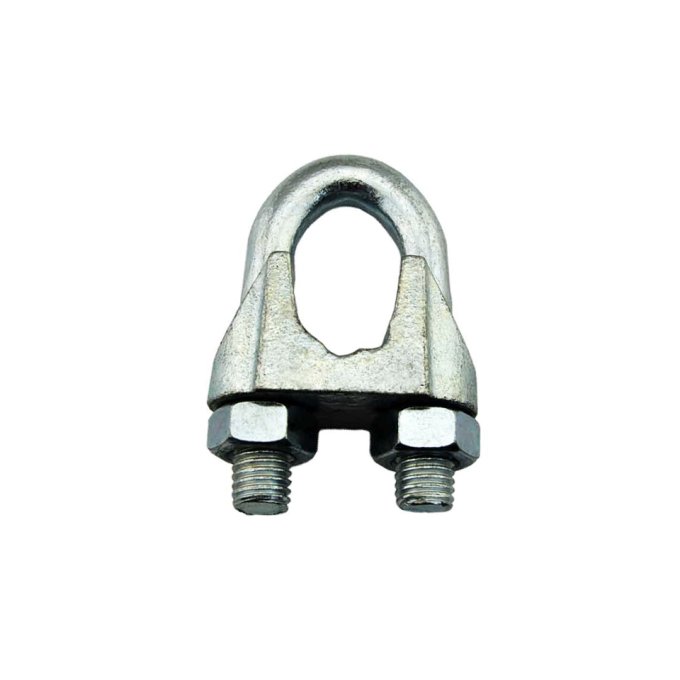

DIN 741 WIRE ROPE CLIP
